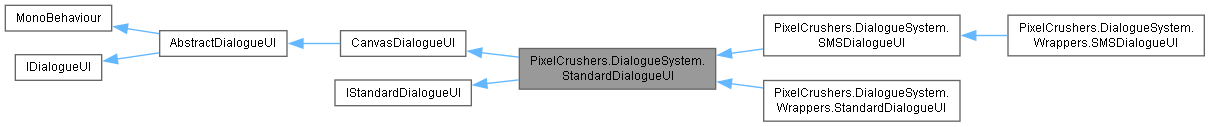

Inheritance diagram for PixelCrushers.DialogueSystem.StandardDialogueUI:

[legend]

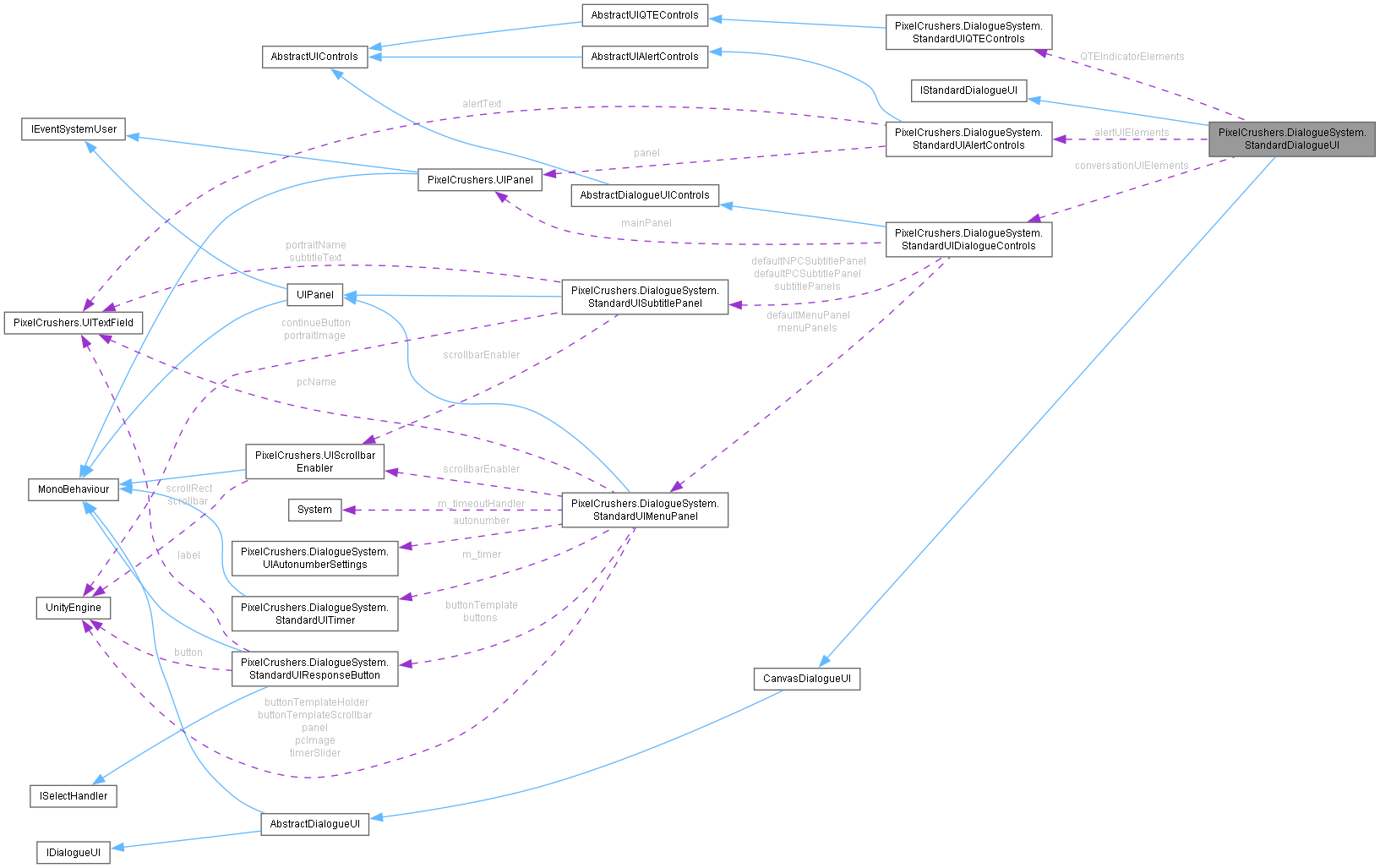

Collaboration diagram for PixelCrushers.DialogueSystem.StandardDialogueUI:

[legend]

Public Member Functions
override void	Awake ()
	Sets up the component.

virtual void	OnEnable ()

virtual void	OnDisable ()

void	OnSceneLoaded (UnityEngine.SceneManagement.Scene scene, UnityEngine.SceneManagement.LoadSceneMode mode)

override void	Open ()
	Opens the conversation GUI.

override void	Close ()
	Closes the conversation GUI.

virtual bool	AreAnyPanelsClosing (StandardUISubtitlePanel extraSubtitlePanel=null)

override void	Update ()
	Updates this instance by hiding the alert message when it's done.

override void	ShowAlert (string message, float duration)
	Shows an alert.

override void	HideAllAlerts ()
	Hides the alert if it's showing.

override void	ShowSubtitle (Subtitle subtitle)
	Shows the subtitle (NPC or PC) based on the character type.

override void	HideSubtitle (Subtitle subtitle)
	Hides the subtitle based on its character type (PC or NPC).

virtual float	GetTypewriterSpeed ()
	Returns the speed of the first typewriter effect found.

virtual void	SetTypewriterSpeed (float charactersPerSecond)
	Sets the speed of all typewriter effects.

virtual void	SetActorSubtitlePanelNumber (DialogueActor dialogueActor, SubtitlePanelNumber subtitlePanelNumber)
	Changes a dialogue actor's subtitle panel for the currently active conversation.

virtual void	SetActorMenuPanelNumber (DialogueActor dialogueActor, MenuPanelNumber menuPanelNumber)
	Changes a dialogue actor's menu panel for the currently active conversation.

virtual void	OverrideActorPanel (Actor actor, SubtitlePanelNumber subtitlePanelNumber, bool immediate=false)

virtual void	ForceOverrideSubtitlePanel (StandardUISubtitlePanel customPanel)

virtual void	ShowActorInPanel (Actor actor, SubtitlePanelNumber subtitlePanelNumber, StandardUISubtitlePanel customPanel=null)
	Shows an actor immediately in a subtitle panel.

override void	ShowResponses (Subtitle subtitle, Response[] responses, float timeout)
	Shows the player responses menu.

override void	OnClick (object data)
	Handles response button clicks.

virtual void	OverrideActorMenuPanel (Transform actorTransform, MenuPanelNumber menuPanelNumber, StandardUIMenuPanel customPanel)

virtual void	OverrideActorMenuPanel (Actor actor, MenuPanelNumber menuPanelNumber, StandardUIMenuPanel customPanel)

virtual void	ForceOverrideMenuPanel (StandardUIMenuPanel customPanel)

Public Member Functions inherited from PixelCrushers.DialogueSystem.AbstractDialogueUI
virtual void	Start ()
	Starts this instance by hiding everything.

virtual void	HideAlert ()
	Hides the alert if it's showing.

virtual void	ShowContinueButton (Subtitle subtitle)
	Shows the continue button.

virtual void	HideContinueButton (Subtitle subtitle)
	Hides the continue button.

virtual void	HideResponses ()
	Hides the player response menu.

virtual void	ShowQTEIndicator (int index)
	Shows a QTE indicator.

virtual void	HideQTEIndicator (int index)
	Hides a QTE indicator.

virtual void	OnContinue ()
	Handles the continue button being clicked.

virtual void	OnContinueAlert ()

virtual void	OnContinueConversation ()

virtual void	SetPCPortrait (Sprite portraitSprite, string portraitName)
	Sets the PC portrait name and sprite.

virtual void	SetPCPortrait (Texture2D portraitTexture, string portraitName)

virtual void	SetActorPortraitSprite (string actorName, Sprite portraitSprite)
	Sets the portrait sprite for an actor.

Public Attributes
StandardUIAlertControls	alertUIElements

StandardUIDialogueControls	conversationUIElements

StandardUIQTEControls	QTEIndicatorElements

bool	addEventSystemIfNeeded = true

bool	verifyPanelAssignments = true

Protected Member Functions
virtual void	CloseNow ()

IEnumerator	CloseAfterPanelsAreClosed ()

virtual bool	IsMainPanelClosed ()

virtual IEnumerator	ShowSubtitleWhenMainPanelOpen (Subtitle subtitle)

virtual void	ShowSubtitleImmediate (Subtitle subtitle)

virtual IEnumerator	ShowResponsesWhenMainPanelOpen (Subtitle subtitle, Response[] responses, float timeout)

virtual void	ShowResponsesImmediate (Subtitle subtitle, Response[] responses, float timeout)

Protected Member Functions inherited from PixelCrushers.DialogueSystem.AbstractDialogueUI
virtual void	SetSubtitle (Subtitle subtitle, bool value)
	Sets a subtitle's content and visibility.

Protected Attributes
Coroutine	closeCoroutine = null

Static Protected Attributes
const float	WaitForOpenTimeoutDuration = 8f

Properties
override AbstractUIRoot	uiRootControls `[get]`

override AbstractUIAlertControls	alertControls `[get]`

override AbstractDialogueUIControls	dialogueControls `[get]`

override AbstractUIQTEControls	qteControls `[get]`

Queue< QueuedUIAlert >	alertQueue `[get]`

Properties inherited from PixelCrushers.DialogueSystem.AbstractDialogueUI
AbstractUIRoot	uiRootControls `[get]`
	Gets the user interface root.

AbstractDialogueUIControls	dialogueControls `[get]`
	Gets the dialogue controls.

AbstractUIQTEControls	qteControls `[get]`
	Gets the QTE (Quick Time Event) indicators.

AbstractUIAlertControls	alertControls `[get]`
	Gets the alert message controls.

bool	isOpen `[get, set]`
	Gets or sets a value indicating whether the dialogue UI (conversation interface) is open.

virtual bool	AreNonDialogueControlsVisible `[get]`
	Gets a value indicating whether non-conversation controls (e.g., alert message or QTEs) are visible.

Additional Inherited Members
Static Public Member Functions inherited from PixelCrushers.DialogueSystem.AbstractDialogueUI
static Sprite	GetValidPortraitSprite (string actorName, Sprite portraitSprite)
	Gets a valid portrait sprite.

static Texture2D	GetValidPortraitTexture (string actorName, Texture2D portraitTexture)

Events inherited from PixelCrushers.DialogueSystem.AbstractDialogueUI
EventHandler< SelectedResponseEventArgs >	SelectedResponseHandler
	Occurs when the player selects a response.

Events inherited from PixelCrushers.DialogueSystem.IDialogueUI
EventHandler< SelectedResponseEventArgs >	SelectedResponseHandler
	Your implementation must define this event and make it public.

Member Function Documentation

◆ AreAnyPanelsClosing()

virtual bool PixelCrushers.DialogueSystem.StandardDialogueUI.AreAnyPanelsClosing ( StandardUISubtitlePanel extraSubtitlePanel = null )

inlinevirtual

◆ Awake()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.Awake ( )

inlinevirtual

Sets up the component.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ Close()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.Close ( )

inlinevirtual

Closes the conversation GUI.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ CloseAfterPanelsAreClosed()

IEnumerator PixelCrushers.DialogueSystem.StandardDialogueUI.CloseAfterPanelsAreClosed ( )

inlineprotected

◆ CloseNow()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.CloseNow ( )

inlineprotectedvirtual

◆ ForceOverrideMenuPanel()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.ForceOverrideMenuPanel ( StandardUIMenuPanel customPanel )

inlinevirtual

◆ ForceOverrideSubtitlePanel()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.ForceOverrideSubtitlePanel ( StandardUISubtitlePanel customPanel )

inlinevirtual

◆ GetTypewriterSpeed()

virtual float PixelCrushers.DialogueSystem.StandardDialogueUI.GetTypewriterSpeed ( )

inlinevirtual

Returns the speed of the first typewriter effect found.

◆ HideAllAlerts()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.HideAllAlerts ( )

inlinevirtual

Hides the alert if it's showing.

Virtual so StandardDialogueUI can override to clear alert queue, too.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ HideSubtitle()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.HideSubtitle ( Subtitle subtitle )

inlinevirtual

Hides the subtitle based on its character type (PC or NPC).

Parameters

subtitle Subtitle to hide.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ IsMainPanelClosed()

virtual bool PixelCrushers.DialogueSystem.StandardDialogueUI.IsMainPanelClosed ( )

inlineprotectedvirtual

◆ OnClick()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.OnClick ( object data )

inlinevirtual

Handles response button clicks.

Parameters

data	The Response assigned to the button. This is passed back to the handler.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ OnDisable()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.OnDisable ( )

inlinevirtual

Reimplemented in PixelCrushers.DialogueSystem.SMSDialogueUI.

◆ OnEnable()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.OnEnable ( )

inlinevirtual

Reimplemented in PixelCrushers.DialogueSystem.SMSDialogueUI.

◆ OnSceneLoaded()

void PixelCrushers.DialogueSystem.StandardDialogueUI.OnSceneLoaded	(	UnityEngine::SceneManagement::Scene	scene,
		UnityEngine::SceneManagement::LoadSceneMode	mode
	)

inline

◆ Open()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.Open ( )

inlinevirtual

Opens the conversation GUI.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ OverrideActorMenuPanel() [1/2]

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.OverrideActorMenuPanel	(	Actor	actor,
		MenuPanelNumber	menuPanelNumber,
		StandardUIMenuPanel	customPanel
	)

inlinevirtual

◆ OverrideActorMenuPanel() [2/2]

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.OverrideActorMenuPanel	(	Transform	actorTransform,
		MenuPanelNumber	menuPanelNumber,
		StandardUIMenuPanel	customPanel
	)

inlinevirtual

Implements PixelCrushers.DialogueSystem.IStandardDialogueUI.

◆ OverrideActorPanel()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.OverrideActorPanel	(	Actor	actor,
		SubtitlePanelNumber	subtitlePanelNumber,
		bool	immediate = `false`
	)

inlinevirtual

Implements PixelCrushers.DialogueSystem.IStandardDialogueUI.

◆ SetActorMenuPanelNumber()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.SetActorMenuPanelNumber	(	DialogueActor	dialogueActor,
		MenuPanelNumber	menuPanelNumber
	)

inlinevirtual

Changes a dialogue actor's menu panel for the currently active conversation.

Implements PixelCrushers.DialogueSystem.IStandardDialogueUI.

◆ SetActorSubtitlePanelNumber()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.SetActorSubtitlePanelNumber	(	DialogueActor	dialogueActor,
		SubtitlePanelNumber	subtitlePanelNumber
	)

inlinevirtual

Changes a dialogue actor's subtitle panel for the currently active conversation.

Implements PixelCrushers.DialogueSystem.IStandardDialogueUI.

◆ SetTypewriterSpeed()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.SetTypewriterSpeed ( float charactersPerSecond )

inlinevirtual

Sets the speed of all typewriter effects.

◆ ShowActorInPanel()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.ShowActorInPanel	(	Actor	actor,
		SubtitlePanelNumber	subtitlePanelNumber,
		StandardUISubtitlePanel	customPanel = `null`
	)

inlinevirtual

Shows an actor immediately in a subtitle panel.

◆ ShowAlert()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.ShowAlert	(	string	message,
		float	duration
	)

inlinevirtual

Shows an alert.

Parameters

message	Message to show.
duration	Duration in seconds.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ ShowResponses()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.ShowResponses	(	Subtitle	subtitle,
		Response[]	responses,
		float	timeout
	)

inlinevirtual

Shows the player responses menu.

Parameters

subtitle	The last subtitle, shown as a reminder.
responses	Responses.
timeout	If not `0`, the duration in seconds that the player has to choose a response; otherwise the currently-focused response is auto-selected. If no response is focused (e.g., hovered over), the first response is auto-selected. If `0`, there is no timeout; the player can take as long as desired to choose a response.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ ShowResponsesImmediate()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.ShowResponsesImmediate	(	Subtitle	subtitle,
		Response[]	responses,
		float	timeout
	)

inlineprotectedvirtual

◆ ShowResponsesWhenMainPanelOpen()

virtual IEnumerator PixelCrushers.DialogueSystem.StandardDialogueUI.ShowResponsesWhenMainPanelOpen	(	Subtitle	subtitle,
		Response[]	responses,
		float	timeout
	)

inlineprotectedvirtual

◆ ShowSubtitle()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.ShowSubtitle ( Subtitle subtitle )

inlinevirtual

Shows the subtitle (NPC or PC) based on the character type.

Parameters

subtitle Subtitle to show.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

◆ ShowSubtitleImmediate()

virtual void PixelCrushers.DialogueSystem.StandardDialogueUI.ShowSubtitleImmediate ( Subtitle subtitle )

inlineprotectedvirtual

◆ ShowSubtitleWhenMainPanelOpen()

virtual IEnumerator PixelCrushers.DialogueSystem.StandardDialogueUI.ShowSubtitleWhenMainPanelOpen ( Subtitle subtitle )

inlineprotectedvirtual

◆ Update()

override void PixelCrushers.DialogueSystem.StandardDialogueUI.Update ( )

inlinevirtual

Updates this instance by hiding the alert message when it's done.

Reimplemented from PixelCrushers.DialogueSystem.AbstractDialogueUI.

Member Data Documentation

◆ addEventSystemIfNeeded

bool PixelCrushers.DialogueSystem.StandardDialogueUI.addEventSystemIfNeeded = true

◆ alertUIElements

StandardUIAlertControls PixelCrushers.DialogueSystem.StandardDialogueUI.alertUIElements

◆ closeCoroutine

Coroutine PixelCrushers.DialogueSystem.StandardDialogueUI.closeCoroutine = null

protected

◆ conversationUIElements

StandardUIDialogueControls PixelCrushers.DialogueSystem.StandardDialogueUI.conversationUIElements

◆ QTEIndicatorElements

StandardUIQTEControls PixelCrushers.DialogueSystem.StandardDialogueUI.QTEIndicatorElements

◆ verifyPanelAssignments

bool PixelCrushers.DialogueSystem.StandardDialogueUI.verifyPanelAssignments = true

◆ WaitForOpenTimeoutDuration

const float PixelCrushers.DialogueSystem.StandardDialogueUI.WaitForOpenTimeoutDuration = 8f

staticprotected

Property Documentation

◆ alertControls

override AbstractUIAlertControls PixelCrushers.DialogueSystem.StandardDialogueUI.alertControls

get

◆ alertQueue

Queue<QueuedUIAlert> PixelCrushers.DialogueSystem.StandardDialogueUI.alertQueue

getprotected

◆ dialogueControls

override AbstractDialogueUIControls PixelCrushers.DialogueSystem.StandardDialogueUI.dialogueControls

get

◆ qteControls

override AbstractUIQTEControls PixelCrushers.DialogueSystem.StandardDialogueUI.qteControls

get

◆ uiRootControls

override AbstractUIRoot PixelCrushers.DialogueSystem.StandardDialogueUI.uiRootControls

get

The documentation for this class was generated from the following file:

C:/Dev/Dialogue System/Dev/Release2/Assets/Plugins/Pixel Crushers/Dialogue System/Scripts/UI/Standard/Dialogue/StandardDialogueUI.cs

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Properties

Additional Inherited Members

Member Function Documentation

◆ AreAnyPanelsClosing()

◆ Awake()

◆ Close()

◆ CloseAfterPanelsAreClosed()

◆ CloseNow()

◆ ForceOverrideMenuPanel()

◆ ForceOverrideSubtitlePanel()

◆ GetTypewriterSpeed()

◆ HideAllAlerts()

◆ HideSubtitle()

◆ IsMainPanelClosed()

◆ OnClick()

◆ OnDisable()

◆ OnEnable()

◆ OnSceneLoaded()

◆ Open()

◆ OverrideActorMenuPanel() [1/2]

◆ OverrideActorMenuPanel() [2/2]

◆ OverrideActorPanel()

◆ SetActorMenuPanelNumber()

◆ SetActorSubtitlePanelNumber()

◆ SetTypewriterSpeed()

◆ ShowActorInPanel()

◆ ShowAlert()

◆ ShowResponses()

◆ ShowResponsesImmediate()

◆ ShowResponsesWhenMainPanelOpen()

◆ ShowSubtitle()

◆ ShowSubtitleImmediate()

◆ ShowSubtitleWhenMainPanelOpen()

◆ Update()

Member Data Documentation

◆ addEventSystemIfNeeded

◆ alertUIElements

◆ closeCoroutine

◆ conversationUIElements

◆ QTEIndicatorElements

◆ verifyPanelAssignments

◆ WaitForOpenTimeoutDuration

Property Documentation

◆ alertControls

◆ alertQueue

◆ dialogueControls

◆ qteControls

◆ uiRootControls
