PixelCrushers.DialogueSystem.DialogueActor Class Reference

This component allows you to override the actor name used in conversations, which is normally set to the name of the GameObject. More...

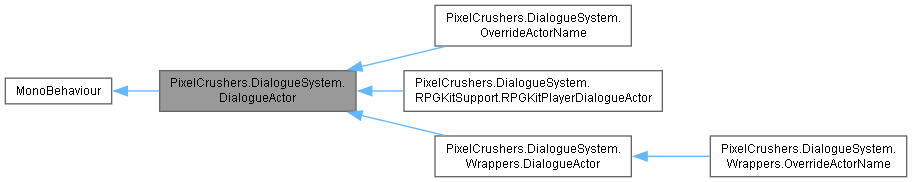

Inheritance diagram for PixelCrushers.DialogueSystem.DialogueActor:

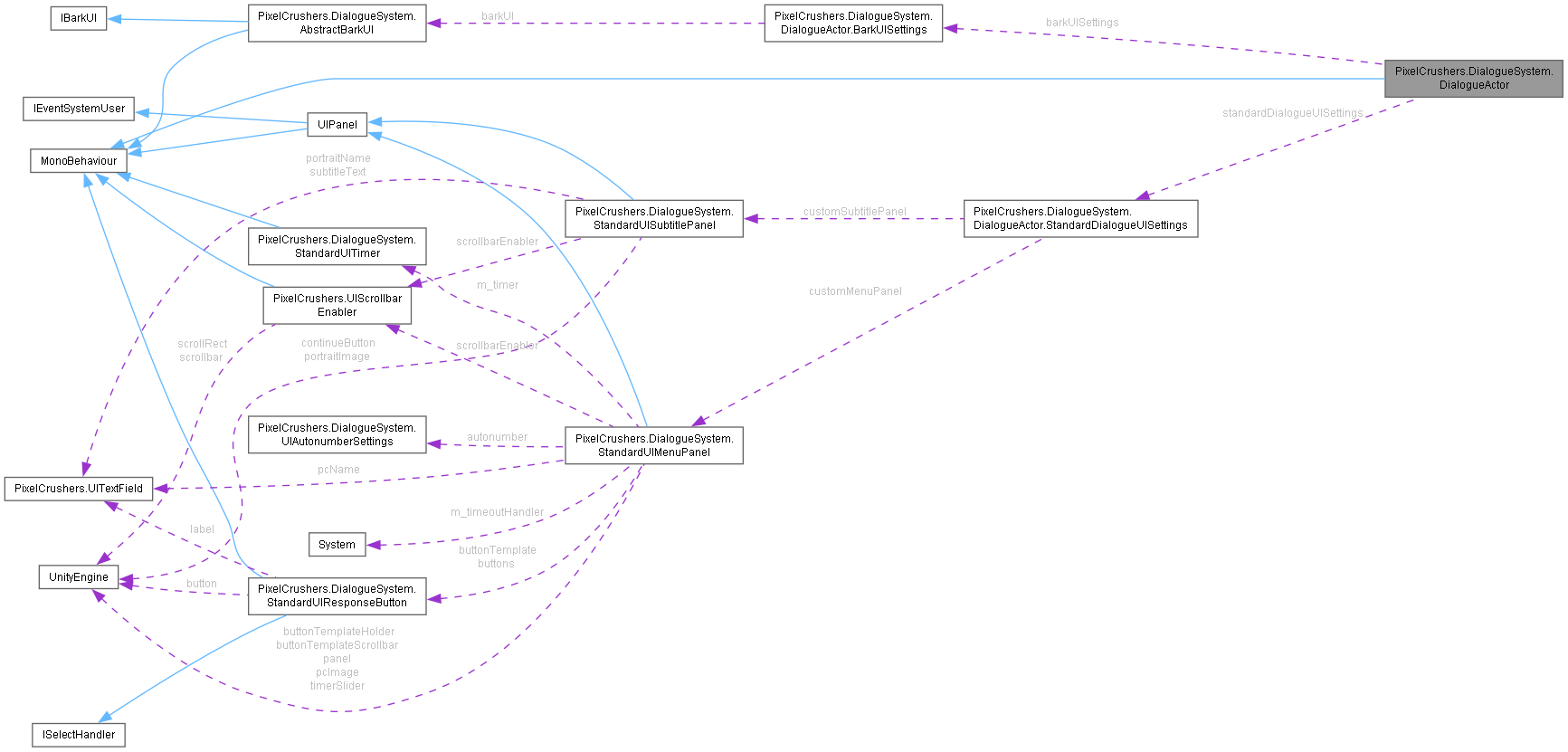

Collaboration diagram for PixelCrushers.DialogueSystem.DialogueActor:

Classes
class	BarkUISettings
class	StandardDialogueUISettings

Public Types
enum	UseMenuPanelFor { OnlyMe , MeAndResponsesToMe }

Public Member Functions
virtual Sprite	GetPortraitSprite ()
virtual string	GetName ()
	Deprecated alias for GetActorName.
virtual string	GetActorName ()
	Gets the name to use for this DialogueActor, including parsing if it contains a [lua], [var], or [em#] tag.
virtual string	GetPersistentDataName ()
	Gets the name to use when saving persistent data.
virtual SubtitlePanelNumber	GetSubtitlePanelNumber ()
	Gets the panel number to use if using a Standard Dialogue UI.
virtual void	SetSubtitlePanelNumber (SubtitlePanelNumber newSubtitlePanelNumber)
	Changes a dialogue actor's subtitle panel number.
virtual MenuPanelNumber	GetMenuPanelNumber ()
	Gets the menu panel number to use if using a Standard Dialogue UI.
virtual void	SetMenuPanelNumber (MenuPanelNumber newMenuPanelNumber)
	Changes a dialogue actor's menu panel number.
virtual string	AdjustSubtitleColor (Subtitle subtitle)
	Applies any color settings specified in the actor's standardDialogueUISettings.

Static Public Member Functions
static DialogueActor	GetDialogueActorComponent (Transform t)
	Searches a GameObject, including its parents and children, for a DialogueActor component.
static string	GetActorName (Transform t)
	Gets the name of the actor, either from the GameObject or its DialogueActor if present.
static string	GetPersistentDataName (Transform t)
	Gets the persistent data name of the actor, from the DialogueActor's persistentDataName if set, otherwise the actor name, or the GameObject name if the GameObject doesn't have a DialogueActor component.
static SubtitlePanelNumber	GetSubtitlePanelNumber (Transform t)
	Gets the panel number to use if using a Standard Dialogue UI.
static IBarkUI	GetBarkUI (Transform t)

Public Attributes
string	actor
	Overrides the actor name used in conversations.
string	persistentDataName
	The internal name to use in the dialogue database when saving persistent data.
Texture2D	portrait
Sprite	spritePortrait
BarkUISettings	barkUISettings = new BarkUISettings()
StandardDialogueUISettings	standardDialogueUISettings = new StandardDialogueUISettings()

Protected Member Functions
virtual void	Awake ()
virtual void	SetupBarkUI ()
virtual void	SetupDialoguePanels ()
virtual void	OnEnable ()
virtual void	OnDisable ()

Detailed Description

This component allows you to override the actor name used in conversations, which is normally set to the name of the GameObject.

If the override name contains a [lua] or [var] tag, it parses the value.

Member Enumeration Documentation

UseMenuPanelFor

enum PixelCrushers.DialogueSystem.DialogueActor.UseMenuPanelFor

Enumerator
OnlyMe
MeAndResponsesToMe

Member Function Documentation

AdjustSubtitleColor()

virtual string PixelCrushers.DialogueSystem.DialogueActor.AdjustSubtitleColor ( Subtitle  subtitle )

inlinevirtual

Applies any color settings specified in the actor's standardDialogueUISettings.

Parameters

subtitle

The subtitle containing the source text.

Returns

The subtitle text adjusted for the actor's color settings.

Awake()

virtual void PixelCrushers.DialogueSystem.DialogueActor.Awake ( )

inlineprotectedvirtual

GetActorName() [1/2]

virtual string PixelCrushers.DialogueSystem.DialogueActor.GetActorName ( )

inlinevirtual

Gets the name to use for this DialogueActor, including parsing if it contains a [lua], [var], or [em#] tag.

Returns

The name to use, or null if not set.

GetActorName() [2/2]

static string PixelCrushers.DialogueSystem.DialogueActor.GetActorName ( Transform  t )

inlinestatic

Gets the name of the actor, either from the GameObject or its DialogueActor if present.

Returns

The actor name.

Parameters

t	The actor's transform.

GetBarkUI()

static IBarkUI PixelCrushers.DialogueSystem.DialogueActor.GetBarkUI ( Transform  t )

inlinestatic

GetDialogueActorComponent()

static DialogueActor PixelCrushers.DialogueSystem.DialogueActor.GetDialogueActorComponent ( Transform  t )

inlinestatic

Searches a GameObject, including its parents and children, for a DialogueActor component.

Parameters

t	The GameObject to search.

Returns

The DialogueActor component, or null if not found.

GetMenuPanelNumber()

virtual MenuPanelNumber PixelCrushers.DialogueSystem.DialogueActor.GetMenuPanelNumber ( )

inlinevirtual

Gets the menu panel number to use if using a Standard Dialogue UI.

GetName()

virtual string PixelCrushers.DialogueSystem.DialogueActor.GetName ( )

inlinevirtual

Deprecated alias for GetActorName.

GetPersistentDataName() [1/2]

virtual string PixelCrushers.DialogueSystem.DialogueActor.GetPersistentDataName ( )

inlinevirtual

Gets the name to use when saving persistent data.

GetPersistentDataName() [2/2]

static string PixelCrushers.DialogueSystem.DialogueActor.GetPersistentDataName ( Transform  t )

inlinestatic

Gets the persistent data name of the actor, from the DialogueActor's persistentDataName if set, otherwise the actor name, or the GameObject name if the GameObject doesn't have a DialogueActor component.

Parameters

t	The actor's transform.

Returns

GetPortraitSprite()

virtual Sprite PixelCrushers.DialogueSystem.DialogueActor.GetPortraitSprite ( )

inlinevirtual

GetSubtitlePanelNumber() [1/2]

virtual SubtitlePanelNumber PixelCrushers.DialogueSystem.DialogueActor.GetSubtitlePanelNumber ( )

inlinevirtual

Gets the panel number to use if using a Standard Dialogue UI.

GetSubtitlePanelNumber() [2/2]

static SubtitlePanelNumber PixelCrushers.DialogueSystem.DialogueActor.GetSubtitlePanelNumber ( Transform  t )

inlinestatic

Gets the panel number to use if using a Standard Dialogue UI.

Parameters

t	The actor's transform.

OnDisable()

virtual void PixelCrushers.DialogueSystem.DialogueActor.OnDisable ( )

inlineprotectedvirtual

OnEnable()

virtual void PixelCrushers.DialogueSystem.DialogueActor.OnEnable ( )

inlineprotectedvirtual

SetMenuPanelNumber()

virtual void PixelCrushers.DialogueSystem.DialogueActor.SetMenuPanelNumber ( MenuPanelNumber  newMenuPanelNumber )

inlinevirtual

Changes a dialogue actor's menu panel number.

If a conversation is active, updates the dialogue UI.

SetSubtitlePanelNumber()

virtual void PixelCrushers.DialogueSystem.DialogueActor.SetSubtitlePanelNumber ( SubtitlePanelNumber  newSubtitlePanelNumber )

inlinevirtual

Changes a dialogue actor's subtitle panel number.

If a conversation is active, updates the dialogue UI.

SetupBarkUI()

virtual void PixelCrushers.DialogueSystem.DialogueActor.SetupBarkUI ( )

inlineprotectedvirtual

SetupDialoguePanels()

virtual void PixelCrushers.DialogueSystem.DialogueActor.SetupDialoguePanels ( )

inlineprotectedvirtual

Member Data Documentation

actor

string PixelCrushers.DialogueSystem.DialogueActor.actor

Overrides the actor name used in conversations.

barkUISettings

BarkUISettings PixelCrushers.DialogueSystem.DialogueActor.barkUISettings = new BarkUISettings()

persistentDataName

string PixelCrushers.DialogueSystem.DialogueActor.persistentDataName

The internal name to use in the dialogue database when saving persistent data.

If blank, uses the override name.

portrait

Texture2D PixelCrushers.DialogueSystem.DialogueActor.portrait

spritePortrait

Sprite PixelCrushers.DialogueSystem.DialogueActor.spritePortrait

standardDialogueUISettings

StandardDialogueUISettings PixelCrushers.DialogueSystem.DialogueActor.standardDialogueUISettings = new StandardDialogueUISettings()

---

The documentation for this class was generated from the following file:

• C:/Dev/Dialogue System/Dev/Release2/Assets/Plugins/Pixel Crushers/Dialogue System/Scripts/MVC/Actor/DialogueActor.cs
