PixelCrushers.DialogueSystem.IDialogueUI Interface Reference

Interface for dialogue UI components. More...

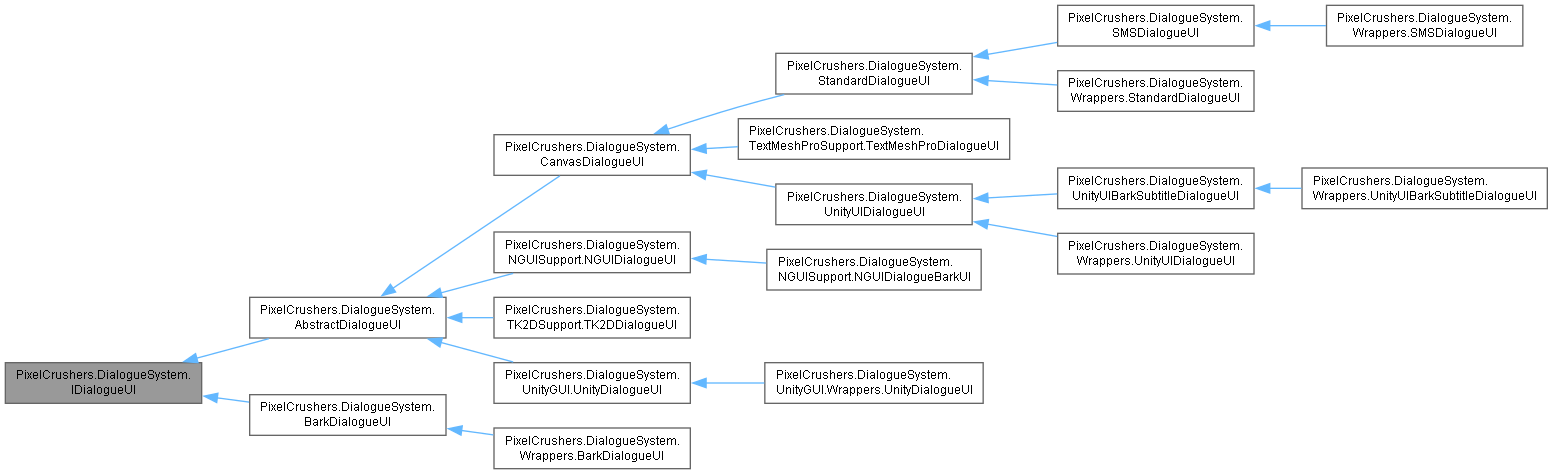

Inheritance diagram for PixelCrushers.DialogueSystem.IDialogueUI:

Public Member Functions
void	Open ()
	Called when a conversation starts, use Open() to do any setup – for example, to show the conversation GUI controls.
void	Close ()
	Called when a conversation ends, use Close() to clean up – for example, to hide the conversation GUI controls.
void	ShowSubtitle (Subtitle subtitle)
	Shows a subtitle.
void	HideSubtitle (Subtitle subtitle)
	Hides a subtitle.
void	ShowResponses (Subtitle subtitle, Response[] responses, float timeout)
	Shows the player response menu.
void	HideResponses ()
	Hides the player response menu.
void	ShowQTEIndicator (int index)
	Shows a QTE (Quick Time Event) indicator.
void	HideQTEIndicator (int index)
	Hides a QTE (Quick Time Event) indicator.
void	ShowAlert (string message, float duration)
	Shows an alert message.
void	HideAlert ()
	Hides the alert message if it's showing.

Events
EventHandler< SelectedResponseEventArgs >	SelectedResponseHandler
	Your implementation must define this event and make it public.

Detailed Description

Interface for dialogue UI components.

A dialogue UI is responsible for displaying subtitles, presenting the player response menu, and showing alerts.

See UnityDialogueUI for a reference implementation that uses Unity GUI.

Member Function Documentation

Close()

void PixelCrushers.DialogueSystem.IDialogueUI.Close

(

)

Called when a conversation ends, use Close() to clean up – for example, to hide the conversation GUI controls.

Implemented in PixelCrushers.DialogueSystem.BarkDialogueUI, PixelCrushers.DialogueSystem.AbstractDialogueUI, PixelCrushers.DialogueSystem.SMSDialogueUI, and PixelCrushers.DialogueSystem.StandardDialogueUI.

HideAlert()

void PixelCrushers.DialogueSystem.IDialogueUI.HideAlert

(

)

Hides the alert message if it's showing.

Implemented in PixelCrushers.DialogueSystem.BarkDialogueUI, and PixelCrushers.DialogueSystem.AbstractDialogueUI.

HideQTEIndicator()

void PixelCrushers.DialogueSystem.IDialogueUI.HideQTEIndicator

(

int

index

)

Hides a QTE (Quick Time Event) indicator.

Parameters

index

Index number of the QTE indicator.

If your project doesn't use QTEs, you can just create an empty method.

Implemented in PixelCrushers.DialogueSystem.BarkDialogueUI, and PixelCrushers.DialogueSystem.AbstractDialogueUI.

HideResponses()

void PixelCrushers.DialogueSystem.IDialogueUI.HideResponses

(

)

Hides the player response menu.

Implemented in PixelCrushers.DialogueSystem.TextMeshProSupport.TextMeshProDialogueUI, PixelCrushers.DialogueSystem.BarkDialogueUI, PixelCrushers.DialogueSystem.AbstractDialogueUI, and PixelCrushers.DialogueSystem.UnityUIDialogueUI.

HideSubtitle()

void PixelCrushers.DialogueSystem.IDialogueUI.HideSubtitle

(

Subtitle

subtitle

)

Hides a subtitle.

Parameters

subtitle

The subtitle to hide.

Implemented in PixelCrushers.DialogueSystem.TextMeshProSupport.TextMeshProDialogueUI, PixelCrushers.DialogueSystem.BarkDialogueUI, PixelCrushers.DialogueSystem.AbstractDialogueUI, PixelCrushers.DialogueSystem.SMSDialogueUI, PixelCrushers.DialogueSystem.StandardDialogueUI, and PixelCrushers.DialogueSystem.UnityUIDialogueUI.

Open()

void PixelCrushers.DialogueSystem.IDialogueUI.Open

(

)

Called when a conversation starts, use Open() to do any setup – for example, to show the conversation GUI controls.

Implemented in PixelCrushers.DialogueSystem.NGUISupport.NGUIDialogueUI, PixelCrushers.DialogueSystem.TextMeshProSupport.TextMeshProDialogueUI, PixelCrushers.DialogueSystem.BarkDialogueUI, PixelCrushers.DialogueSystem.AbstractDialogueUI, PixelCrushers.DialogueSystem.UnityGUI.UnityDialogueUI, PixelCrushers.DialogueSystem.SMSDialogueUI, PixelCrushers.DialogueSystem.StandardDialogueUI, and PixelCrushers.DialogueSystem.UnityUIDialogueUI.

ShowAlert()

void PixelCrushers.DialogueSystem.IDialogueUI.ShowAlert	(	string	message,
		float	duration
	)

Shows an alert message.

The dialogue system will not call Open() before ShowAlert(), nor Close() afterward, since alert messages are intended to be shown outside of conversations.

Parameters

message	The message to show.
duration	The duration in seconds to show the message.

Implemented in PixelCrushers.DialogueSystem.NGUISupport.NGUIDialogueUI, PixelCrushers.DialogueSystem.TextMeshProSupport.TextMeshProDialogueUI, PixelCrushers.DialogueSystem.BarkDialogueUI, PixelCrushers.DialogueSystem.AbstractDialogueUI, PixelCrushers.DialogueSystem.StandardDialogueUI, and PixelCrushers.DialogueSystem.UnityUIDialogueUI.

ShowQTEIndicator()

void PixelCrushers.DialogueSystem.IDialogueUI.ShowQTEIndicator

(

int

index

)

Shows a QTE (Quick Time Event) indicator.

Parameters

index

Index number of the QTE indicator.

If your project doesn't use QTEs, you can just create an empty method.

Implemented in PixelCrushers.DialogueSystem.BarkDialogueUI, and PixelCrushers.DialogueSystem.AbstractDialogueUI.

ShowResponses()

void PixelCrushers.DialogueSystem.IDialogueUI.ShowResponses	(	Subtitle	subtitle,
		Response[]	responses,
		float	timeout
	)

Shows the player response menu.

When the player selects a response, your implementation must call the SelectedResponseHandler event and pass along a SelectedResponseEventArgs object containing the selected response.

Example: private void OnResponseClicked(Response response) { SelectedResponseHandler(this, new SelectedResponseEventArgs(response)); }

Parameters

subtitle	The most recently displayed subtitle. Your implementation might show this subtitle to remind the player what he or she is responding to.
responses	The responses.
timeout	If not 0, the duration in seconds that the player has to choose a response; otherwise the currently-focused response is auto-selected. If no response is focused (e.g., hovered over), the first response is auto-selected. If 0, there is no timeout; the player can take as long as desired to choose a response.

Implemented in PixelCrushers.DialogueSystem.TextMeshProSupport.TextMeshProDialogueUI, PixelCrushers.DialogueSystem.BarkDialogueUI, PixelCrushers.DialogueSystem.AbstractDialogueUI, PixelCrushers.DialogueSystem.SMSDialogueUI, PixelCrushers.DialogueSystem.StandardDialogueUI, and PixelCrushers.DialogueSystem.UnityUIDialogueUI.

ShowSubtitle()

void PixelCrushers.DialogueSystem.IDialogueUI.ShowSubtitle

(

Subtitle

subtitle

)

Shows a subtitle.

Parameters

subtitle

The subtitle to show. Subtitles contain information such as the player type (PC or NPC), portrait texture, and the formatted text of the line.

Implemented in PixelCrushers.DialogueSystem.NGUISupport.NGUIDialogueBarkUI, PixelCrushers.DialogueSystem.NGUISupport.NGUIDialogueUI, PixelCrushers.DialogueSystem.TextMeshProSupport.TextMeshProDialogueUI, PixelCrushers.DialogueSystem.BarkDialogueUI, PixelCrushers.DialogueSystem.AbstractDialogueUI, PixelCrushers.DialogueSystem.SMSDialogueUI, PixelCrushers.DialogueSystem.StandardDialogueUI, PixelCrushers.DialogueSystem.UnityUIBarkSubtitleDialogueUI, and PixelCrushers.DialogueSystem.UnityUIDialogueUI.

Event Documentation

SelectedResponseHandler

EventHandler<SelectedResponseEventArgs> PixelCrushers.DialogueSystem.IDialogueUI.SelectedResponseHandler

Your implementation must define this event and make it public.

Example:

public event EventHandler<SelectedResponseEventArgs> SelectedResponseHandler;

---

The documentation for this interface was generated from the following file:

• C:/Dev/Dialogue System/Dev/Release2/Assets/Plugins/Pixel Crushers/Dialogue System/Scripts/MVC/View/Dialogue/IDialogueUI.cs
