This is a "child" component created by UnityBarkUI. More...

Inheritance diagram for PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI:

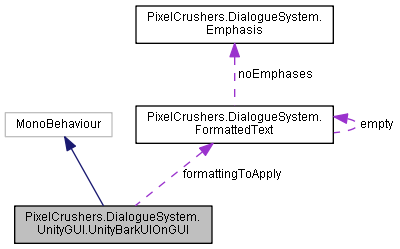

Collaboration diagram for PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI:

[legend]

Public Member Functions
virtual void	Awake ()

virtual void	Start ()
	Starts this instance by computing the offset to the head of the character. More...

virtual void	Show (Subtitle subtitle, float duration, GUISkin guiSkin, string guiStyleName, TextStyle textStyle, bool includeName, Transform textPosition)
	Barks a subtitle. More...

virtual void	Show (Subtitle subtitle, float duration, GUISkin guiSkin, string guiStyleName, TextStyle textStyle, Color textStyleColor, bool includeName, Transform textPosition)
	Barks a subtitle. More...

IEnumerator	FadeOut (float fadeDuration)

virtual void	OnGUI ()
	Draws the bark text using Unity GUI. More...

Public Attributes
Vector3	offset = Vector3.zero

float	maxWidth = 0

Protected Member Functions
void	ComputeOffsetToHead ()

void	UpdateBarkPosition ()

Protected Attributes
GUISkin	guiSkin = null

string	guiStyleName = null

GUIStyle	guiStyle = null

FormattedText	formattingToApply = null

TextStyle	textStyle = TextStyle.None

Color	textStyleColor = Color.black

Vector2	size

string	message = null

float	alpha = 1f

Transform	myTransform

Transform	absolutePosition

Vector3	offsetToHead = Vector3.zero
	The offset to the character's head, computed to be the top of the CharacterController or CapsuleCollider. More...

Vector3	screenPos = Vector3.zero
	The screen position of the bark text. More...

Properties
bool	IsPlaying `[get]`
	Indicates whether this bark UI is currently showing a bark. More...

Vector3	BarkPosition `[get]`
	Gets the position of the bark text in world space. More...

Detailed Description

This is a "child" component created by UnityBarkUI.

For efficiency, this child component contains the OnGUI() method. This allows UnityBarkUI to enable and disable OnGUI() as necessary, since Unity has substantial overhead for every OnGUI() call, even if it exits immediately.

UnityBarkUI adds this component automatically if it doesn't already exist on the NPC. However, if you want to add an offset for the text, you can add this component manually and set the offset property.

Member Function Documentation

◆ Awake()

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.Awake ( )

virtual

◆ ComputeOffsetToHead()

void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.ComputeOffsetToHead ( )

protected

◆ FadeOut()

IEnumerator PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.FadeOut ( float fadeDuration )

◆ OnGUI()

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.OnGUI ( )

virtual

Draws the bark text using Unity GUI.

◆ Show() [1/2]

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.Show	(	Subtitle	subtitle,
		float	duration,
		GUISkin	guiSkin,
		string	guiStyleName,
		TextStyle	textStyle,
		bool	includeName,
		Transform	textPosition
	)

virtual

Barks a subtitle.

Does not observe formatting codes in the subtitle's FormattedText, instead using the formatting settings defined on this component.

Parameters

subtitle	Subtitle to bark.
duration	Duration.
guiSkin	GUI skin.
guiStyleName	GUI style name.
textStyle	Text style.
includeName	Set `true` to include the barker's name in the text.
textPosition	The absolute text position to use; if not set, text is positioned above the collider.

◆ Show() [2/2]

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.Show	(	Subtitle	subtitle,
		float	duration,
		GUISkin	guiSkin,
		string	guiStyleName,
		TextStyle	textStyle,
		Color	textStyleColor,
		bool	includeName,
		Transform	textPosition
	)

virtual

Barks a subtitle.

Does not observe formatting codes in the subtitle's FormattedText, instead using the formatting settings defined on this component.

Parameters

subtitle	Subtitle to bark.
duration	Duration.
guiSkin	GUI skin.
guiStyleName	GUI style name.
textStyle	Text style.
includeName	Set `true` to include the barker's name in the text.
textPosition	The absolute text position to use; if not set, text is positioned above the collider.

◆ Start()

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.Start ( )

virtual

Starts this instance by computing the offset to the head of the character.

◆ UpdateBarkPosition()

void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.UpdateBarkPosition ( )

protected

Member Data Documentation

◆ absolutePosition

Transform PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.absolutePosition

protected

◆ alpha

float PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.alpha = 1f

protected

◆ formattingToApply

FormattedText PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.formattingToApply = null

protected

◆ guiSkin

GUISkin PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.guiSkin = null

protected

◆ guiStyle

GUIStyle PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.guiStyle = null

protected

◆ guiStyleName

string PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.guiStyleName = null

protected

◆ maxWidth

float PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.maxWidth = 0

◆ message

string PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.message = null

protected

◆ myTransform

Transform PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.myTransform

protected

◆ offset

Vector3 PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.offset = Vector3.zero

◆ offsetToHead

Vector3 PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.offsetToHead = Vector3.zero

protected

The offset to the character's head, computed to be the top of the CharacterController or CapsuleCollider.

◆ screenPos

Vector3 PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.screenPos = Vector3.zero

protected

The screen position of the bark text.

◆ size

Vector2 PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.size

protected

◆ textStyle

TextStyle PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.textStyle = TextStyle.None

protected

◆ textStyleColor

Color PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.textStyleColor = Color.black

protected

Property Documentation

◆ BarkPosition

Vector3 PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.BarkPosition

get

Gets the position of the bark text in world space.

This value is only valid what a bark is playing.

The bark position.

◆ IsPlaying

bool PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUIOnGUI.IsPlaying

get

Indicates whether this bark UI is currently showing a bark.

true if playing; otherwise, false.

The documentation for this class was generated from the following file:

D:/Documents/Unity Projects/Dialogue System/Dev/Source/Assets/Dialogue System/Scripts/Supplemental/Unity GUI/Unity Bark UI/UnityBarkUIOnGUI.cs
