Implements IBarkUI using Unity GUI to show bark text above a character's head. More...

Inheritance diagram for PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI:

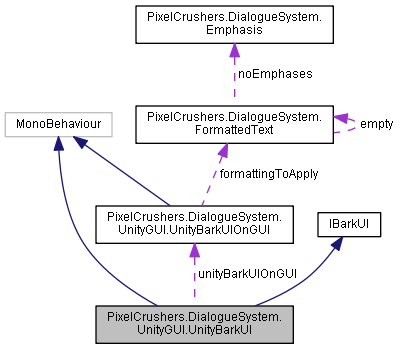

Collaboration diagram for PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI:

[legend]

Public Member Functions
virtual void	Awake ()

virtual void	OnDestroy ()

virtual void	Bark (Subtitle subtitle)
	Barks a subtitle. More...

virtual void	Update ()
	Updates the seconds left and hides the label if time is up. More...

void	OnBarkEnd (Transform actor)

void	Hide ()
	Hides the currently-playing bark. More...

Public Attributes
Transform	textPosition
	The absolute text position. More...

GUISkin	guiSkin
	The GUI skin to use for the bark text. More...

string	guiStyleName
	The name of the GUI style to use. More...

bool	includeName
	Set `true` to include the barker's name in the text. More...

float	duration = 4f
	The duration in seconds to show the bark text before fading it out. More...

float	fadeDuration = 0.5f
	The duration in seconds to fade out. More...

TextStyle	textStyle = TextStyle.Shadow
	The text effect to use for the bark text. More...

Color	textStyleColor = Color.black
	The color of the text style's outline or shadow. More...

BarkSubtitleSetting	textDisplaySetting = BarkSubtitleSetting.SameAsDialogueManager
	The text display setting. More...

bool	waitUntilSequenceEnds = false
	Set `true` to keep the bark text onscreen until the sequence ends. More...

bool	checkIfPlayerVisible = true
	Set `true` to run a raycast to the player. More...

LayerMask	visibilityLayerMask = 1
	The layer mask to use when checking for player visibility. More...

Protected Member Functions
void	CheckUnityBarkUIOnGUI ()

void	CheckPlayerVisibility ()

void	CheckPlayerCameraTransform ()

Protected Attributes
UnityBarkUIOnGUI	unityBarkUIOnGUI = null

Transform	playerCameraTransform = null

Collider	playerCameraCollider = null

float	secondsLeft = 0

Properties
bool	showText `[get]`
	Indicates whether the bark UI should show the text, based on the textDisplaySetting. More...

virtual bool	IsPlaying `[get]`
	Indicates whether a bark is currently playing. More...

Properties inherited from PixelCrushers.DialogueSystem.IBarkUI
bool	IsPlaying `[get]`
	Indicates or sets whether a bark is playing. More...

Detailed Description

Implements IBarkUI using Unity GUI to show bark text above a character's head.

For efficiency, this component adds a "child" component called UnityBarkUIOnGUI that contains the OnGUI() method. This allows UnityBarkUI to enable and disable OnGUI() as necessary, since Unity has substantial overhead for every OnGUI() call, even if it exits immediately. If you want to set a text offset, you can add the UnityBarkUIOnGUI manually instead.

Member Function Documentation

◆ Awake()

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.Awake ( )

virtual

◆ Bark()

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.Bark ( Subtitle subtitle )

virtual

Barks a subtitle.

Does not observe formatting codes in the subtitle's FormattedText, instead using the formatting settings defined on this component.

Parameters

subtitle Subtitle to bark.

Implements PixelCrushers.DialogueSystem.IBarkUI.

◆ CheckPlayerCameraTransform()

void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.CheckPlayerCameraTransform ( )

protected

◆ CheckPlayerVisibility()

void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.CheckPlayerVisibility ( )

protected

◆ CheckUnityBarkUIOnGUI()

void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.CheckUnityBarkUIOnGUI ( )

protected

◆ Hide()

void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.Hide ( )

Hides the currently-playing bark.

Implements PixelCrushers.DialogueSystem.IBarkUI.

◆ OnBarkEnd()

void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.OnBarkEnd ( Transform actor )

◆ OnDestroy()

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.OnDestroy ( )

virtual

◆ Update()

virtual void PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.Update ( )

virtual

Updates the seconds left and hides the label if time is up.

Also updates the UnityBarkUIOnGUI component's bark position.

Member Data Documentation

◆ checkIfPlayerVisible

bool PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.checkIfPlayerVisible = true

Set true to run a raycast to the player.

If the ray is blocked (e.g., a wall blocks visibility to the player), don't show the bark.

◆ duration

float PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.duration = 4f

The duration in seconds to show the bark text before fading it out.

◆ fadeDuration

float PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.fadeDuration = 0.5f

The duration in seconds to fade out.

◆ guiSkin

GUISkin PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.guiSkin

The GUI skin to use for the bark text.

Uses the default skin if this is unassigned.

◆ guiStyleName

string PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.guiStyleName

The name of the GUI style to use.

If unassigned, defaults to label.

◆ includeName

bool PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.includeName

Set true to include the barker's name in the text.

◆ playerCameraCollider

Collider PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.playerCameraCollider = null

protected

◆ playerCameraTransform

Transform PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.playerCameraTransform = null

protected

◆ secondsLeft

float PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.secondsLeft = 0

protected

◆ textDisplaySetting

BarkSubtitleSetting PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.textDisplaySetting = BarkSubtitleSetting.SameAsDialogueManager

The text display setting.

Defaults to use the same subtitle setting as the Dialogue Manager, but you can also set it to always show or always hide the text.

◆ textPosition

Transform PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.textPosition

The absolute text position.

If not set, the text is positioned above the collider.

◆ textStyle

TextStyle PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.textStyle = TextStyle.Shadow

The text effect to use for the bark text.

◆ textStyleColor

Color PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.textStyleColor = Color.black

The color of the text style's outline or shadow.

◆ unityBarkUIOnGUI

UnityBarkUIOnGUI PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.unityBarkUIOnGUI = null

protected

◆ visibilityLayerMask

LayerMask PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.visibilityLayerMask = 1

The layer mask to use when checking for player visibility.

◆ waitUntilSequenceEnds

bool PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.waitUntilSequenceEnds = false

Set true to keep the bark text onscreen until the sequence ends.

Property Documentation

◆ IsPlaying

virtual bool PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.IsPlaying

get

Indicates whether a bark is currently playing.

true if playing; otherwise, false.

◆ showText

bool PixelCrushers.DialogueSystem.UnityGUI.UnityBarkUI.showText

get

Indicates whether the bark UI should show the text, based on the textDisplaySetting.

true to show text; otherwise, false.

The documentation for this class was generated from the following file:

D:/Documents/Unity Projects/Dialogue System/Dev/Source/Assets/Dialogue System/Scripts/Supplemental/Unity GUI/Unity Bark UI/UnityBarkUI.cs
