This is an example converter that demonstrates how to make a subclass of AbstractConverterWindow to make your own converter for the Dialogue System. More...

Inheritance diagram for PixelCrushers.DialogueSystem.CSVConverterWindow:

[legend]

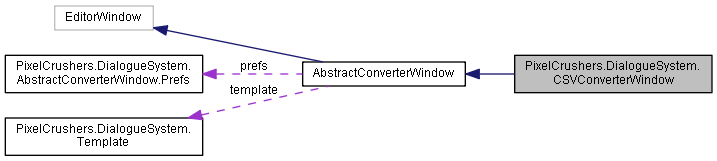

Collaboration diagram for PixelCrushers.DialogueSystem.CSVConverterWindow:

[legend]

Static Public Member Functions
static void	Init ()
	Menu item code to create a CSVConverterWindow. More...

Protected Member Functions
override void	DrawDestinationSection ()
	Draws the destination section. More...

override void	CopySourceToDialogueDatabase (DialogueDatabase database)
	Copies the source CSV file to a dialogue database. More...

override void	LoadSourceFile ()
	Loads the source file into memory. More...

Protected Member Functions inherited from PixelCrushers.DialogueSystem.AbstractConverterWindow
virtual void	ClearPrefs ()

virtual void	LoadPrefs ()

virtual void	SavePrefs ()

virtual void	DrawControls ()
	Draws the contents of the converter window. More...

virtual void	DrawSourceSection ()
	Draws the source section. More...

virtual void	DrawOutputFolder ()
	Draws the output folder selection field. More...

virtual void	DrawDatabaseFilename ()
	Draws the dialogue database save-to filename. More...

virtual void	DrawEncodingPopup ()
	Draws the encoding type popup. More...

virtual void	DrawOverwriteCheckbox ()
	Draws the overwrite checkbox, and merge checkbox if overwrite is ticked. More...

virtual void	DrawConversionButtons ()
	Draws the conversion buttons. More...

virtual void	DrawClearButton ()
	Draws the Clear button that clears the prefs. More...

virtual void	DrawConvertButton ()
	Draws the Convert button that calls Convert(). More...

virtual bool	IsReadyToConvert ()
	Determines whether the window is ready to convert. More...

virtual bool	IsSourceAssigned ()
	Determines whether the source is assigned. More...

virtual void	Convert ()
	Converts the source into a dialogue database. More...

virtual DialogueDatabase	LoadOrCreateDatabase ()
	Loads the dialogue database if it already exists and overwrite is ticked; otherwise creates a new one. More...

virtual void	TouchUpDialogueDatabase (DialogueDatabase database)
	Touches up dialogue database after conversion. More...

virtual void	SetStartCutscenesToNone (DialogueDatabase database)
	Sets the START dialogue entries' Sequences to None(). More...

virtual void	SetConversationStartCutsceneToNone (Conversation conversation)
	Sets a conversation's START entry's Sequence to None(). More...

virtual void	FindPortraitTextures (DialogueDatabase database, string portraitFolder)
	Finds the actors' portrait textures, given a source portrait folder. More...

virtual void	FindPortraitTexture (Actor actor, string portraitFolder)
	Finds an actor's portrait texture. More...

virtual bool	IsSourceAtEnd ()
	Determines whether the source data's memory buffer is at the end. More...

virtual string	PeekNextSourceLine ()
	Peeks the next source line without removing it from the buffer. More...

virtual string	GetNextSourceLine ()
	Gets the next source line and removes it from the buffer. More...

Properties
override string	SourceFileExtension `[get]`
	Gets the source file extension (CSV). More...

override string	PrefsKey `[get]`
	Gets the EditorPrefs key to save the converter window's settings under. More...

Properties inherited from PixelCrushers.DialogueSystem.AbstractConverterWindow
virtual string	SourceFileExtension `[get]`
	Gets the source file extension. More...

virtual string	PrefsKey `[get]`
	Gets the EditorPrefs key to save the converter window's settings under. More...

string	currentSourceLine `[get]`
	The most recent line retrieved through the GetNextSourceLine() method. More...

int	currentLineNumber `[get]`
	The line number in the source file of the current source line. More...

Additional Inherited Members
Public Member Functions inherited from PixelCrushers.DialogueSystem.AbstractConverterWindow
virtual void	OnEnable ()

virtual void	OnDisable ()

virtual void	OnGUI ()

Protected Attributes inherited from PixelCrushers.DialogueSystem.AbstractConverterWindow
Prefs	prefs = null
	The prefs for the converter window. More...

Template	template = null
	A reference to the Dialogue System template, used to create new dialogue database assets such as Actors, Items, and Conversations. More...

Vector2	scrollPosition = Vector2.zero
	The current scroll position of the converter window. More...

List< string >	sourceLines = new List<string>()
	The source lines. More...

Detailed Description

This is an example converter that demonstrates how to make a subclass of AbstractConverterWindow to make your own converter for the Dialogue System.

It converts CSV (comma-separated value) files in a specific format into a dialogue database.

In the CSV file, each section is optional. The sections are:

Database
Actors
Items (also used for quests)
Locations
Variables
Conversations (high level information about each conversation)
DialogueEntries (individual dialogue entries in the conversations)
OutgoingLinks (links between dialogue entries)

The Database section must contain:

Database
Name,Version,Author,Description,Emphasis1,Emphasis2,Emphasis3,Emphasis4
(name),(version),(author),(description),(emphasis setting 1 in format #rrggbbaa biu),(emphasis2),(emphasis3),(emphasis4)
Global User Script
(luacode)

The Actors section must contain:

Actors
ID,Portrait,AltPortraits,Name,Pictures,Description,IsPlayer
Number,Special,Special,Text,Files,Text,Boolean
(id),(texturename),[(texturenames)],(name),[(picturenames)],(description),(isplayer)
...

The Items, Locations, Variables, and Conversations section must contain:

(Heading) -- where this is Items, Locations, Variables, or Conversations
ID,(field),(field),(field)...
Number,(fieldtype),(fieldtype),(fieldtype)...
(id),(fieldvalue),(fieldvalue),(fieldvalue)...

The Variables section may have a final column InitialValueType that specifies the type (Text, Number, or Boolean).

The DialogueEntries section must contain:

DialogueEntries
entrytag,ConvID,ID,Actor,Conversant,MenuText,DialogueText,IsGroup,FalseConditionAction,ConditionPriority,Conditions,Script,Sequence,(field),(field)...,canvasRect
Text,Number,Number,Number,Number,Text,Text,Boolean,Special,Special,Text,Text,Text,(fieldtype),(fieldtype),...,Text
(entrytag),(ConvID),(ID),(ActorID),(ConversantID),(MenuText),(DialogueText),(IsGroup),(FalseConditionAction),(ConditionPriority),(Conditions),(Script),(Sequence),(fieldvalue),(fieldvalue)...,#;#

However canvasRect (the last column) is optional.

The OutgoingLinks section must contain:

OutgoingLinks
OriginConvID,OriginID,DestConvID,DestID,ConditionPriority
Number,Number,Number,Number,Special
#,#,#,#,(priority)

Omitted values in any particular asset should be tagged with "{{omit}}".

Member Function Documentation

◆ CopySourceToDialogueDatabase()

override void PixelCrushers.DialogueSystem.CSVConverterWindow.CopySourceToDialogueDatabase ( DialogueDatabase database )

protectedvirtual

Copies the source CSV file to a dialogue database.

This method demonstrates the helper methods LoadSourceFile(), IsSourceAtEnd(), PeekNextSourceLine(), and GetNextSourceLine().

Parameters

database Dialogue database to copy into.

Reimplemented from PixelCrushers.DialogueSystem.AbstractConverterWindow.

◆ DrawDestinationSection()

override void PixelCrushers.DialogueSystem.CSVConverterWindow.DrawDestinationSection ( )

protectedvirtual

Draws the destination section.

You can override this if you want to draw more than the default controls.

Reimplemented from PixelCrushers.DialogueSystem.AbstractConverterWindow.

◆ Init()

static void PixelCrushers.DialogueSystem.CSVConverterWindow.Init ( )

static

Menu item code to create a CSVConverterWindow.

◆ LoadSourceFile()

override void PixelCrushers.DialogueSystem.CSVConverterWindow.LoadSourceFile ( )

protectedvirtual

Loads the source file into memory.

Reimplemented from PixelCrushers.DialogueSystem.AbstractConverterWindow.

Property Documentation

◆ PrefsKey

override string PixelCrushers.DialogueSystem.CSVConverterWindow.PrefsKey

get

Gets the EditorPrefs key to save the converter window's settings under.

The EditorPrefs key.

◆ SourceFileExtension

override string PixelCrushers.DialogueSystem.CSVConverterWindow.SourceFileExtension

get

Gets the source file extension (CSV).

The source file extension (e.g., 'xml' for XML files).

The documentation for this class was generated from the following file:

D:/Documents/Unity Projects/Dialogue System/Dev/Release/Assets/Dialogue System/Scripts/Editor/Converters/CSVConverterWindow.cs
