A conversation asset. More...

Inheritance diagram for PixelCrushers.DialogueSystem.Conversation:

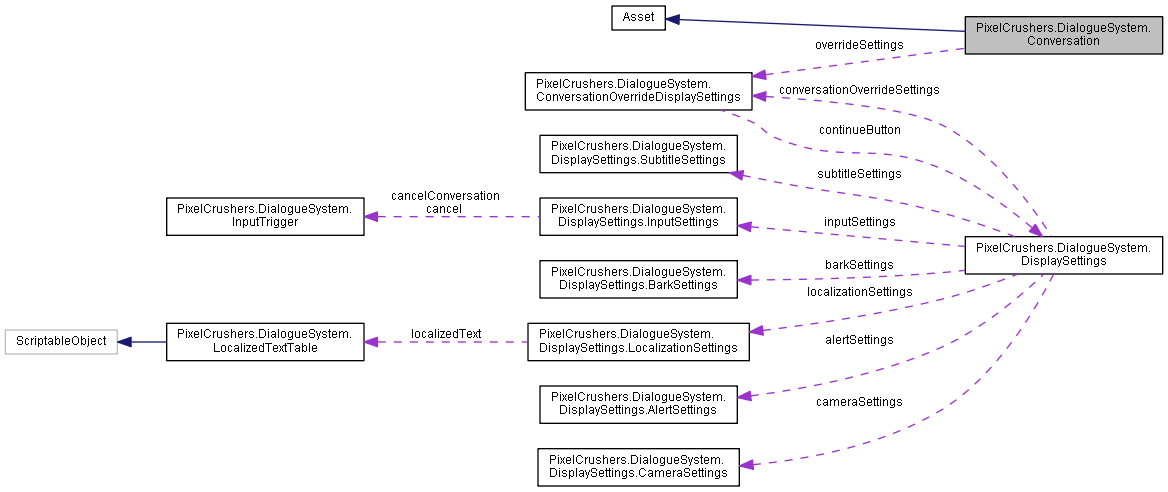

Collaboration diagram for PixelCrushers.DialogueSystem.Conversation:

[legend]

Public Member Functions
	Conversation ()
	Initializes a new Conversation. More...

	Conversation (Conversation sourceConversation)

	Conversation (ChatMapper.Conversation chatMapperConversation, bool putEndSequenceOnLastSplit=true)
	Initializes a new Conversation copied from a Chat Mapper conversation. More...

void	Assign (ChatMapper.Conversation chatMapperConversation, bool putEndSequenceOnLastSplit=true)
	Copies a Chat Mapper conversation. More...

DialogueEntry	GetDialogueEntry (string title)
	Looks up a dialogue entry by title. More...

DialogueEntry	GetDialogueEntry (int dialogueEntryID)
	Looks up a dialogue entry by its ID. More...

DialogueEntry	GetFirstDialogueEntry ()
	Looks up the first dialogue entry in the conversation, defined (as in Chat Mapper) as the entry titled START. More...

void	SplitPipesIntoEntries (bool putEndSequenceOnLastSplit=true, bool trimWhitespace=false)
	Processes all dialogue entries, splitting entries containing pipe characters ("\|") into multiple entries. More...

Public Member Functions inherited from PixelCrushers.DialogueSystem.Asset
	Asset ()
	Initializes a new DialogueAsset. More...

	Asset (Asset sourceAsset)
	Copy constructor. More...

	Asset (int chatMapperID, List< ChatMapper.Field > chatMapperFields)
	Initializes a new DialogueAsset copied from a Chat Mapper asset. More...

void	Assign (int chatMapperID, List< ChatMapper.Field > chatMapperFields)
	Copies a Chat Mapper asset. More...

bool	FieldExists (string title)
	Checks whether a field exists. More...

string	LookupValue (string title)
	Looks up the value of a field. More...

string	LookupLocalizedValue (string title)
	Looks up the localized value of a field for the current language. More...

int	LookupInt (string title)
	Looks up the value of a field. More...

float	LookupFloat (string title)
	Looks up the value of a field. More...

bool	LookupBool (string title)
	Looks up the value of a field. More...

bool	IsFieldAssigned (string title)
	Checks whether a field exists and has non-empty text. More...

Field	AssignedField (string title)
	Returns a field if it exists and has non-empty text. More...

Public Attributes
ConversationOverrideDisplaySettings	overrideSettings = new ConversationOverrideDisplaySettings()
	Optional settings to override the Dialogue Manager's Display Settings. More...

string	nodeColor = null
	Currently unused by the dialogue system, this is the nodeColor value defined in Chat Mapper. More...

List< DialogueEntry >	dialogueEntries = new List<DialogueEntry>()
	The dialogue entries in the conversation. More...

Vector2	canvasScrollPosition = Vector2.zero
	Conversation's scroll position in Dialogue Editor window canvas. More...

float	canvasZoom = 1
	Conversation's zoom level in Dialogue Editor window. More...

Public Attributes inherited from PixelCrushers.DialogueSystem.Asset
int	id = 0
	Every asset has an ID number. More...

List< Field >	fields = null
	The asset's fields. More...

Properties
string	Title `[get, set]`
	Gets or sets the Title field. More...

string	Description `[get, set]`
	Gets or sets the Description field. More...

int	ActorID `[get, set]`
	Gets or sets the Actor ID. More...

int	ConversantID `[get, set]`
	Gets or sets the Conversant ID. More...

Properties inherited from PixelCrushers.DialogueSystem.Asset
string	Name `[get, set]`
	Gets or sets the Name field. More...

string	LocalizedName `[get]`
	Gets the localized Name field. More...

Detailed Description

A conversation asset.

A conversation is a collection of dialogue entries (see DialogueEntry) that are linked together to form branching, interactive dialogue between two actors (see Actor).

Constructor & Destructor Documentation

◆ Conversation() [1/3]

PixelCrushers.DialogueSystem.Conversation.Conversation ( )

Initializes a new Conversation.

◆ Conversation() [2/3]

PixelCrushers.DialogueSystem.Conversation.Conversation ( Conversation sourceConversation )

◆ Conversation() [3/3]

PixelCrushers.DialogueSystem.Conversation.Conversation	(	ChatMapper.Conversation	chatMapperConversation,
		bool	putEndSequenceOnLastSplit = `true`
	)

Initializes a new Conversation copied from a Chat Mapper conversation.

Parameters

chatMapperConversation The Chat Mapper conversation.

Member Function Documentation

◆ Assign()

void PixelCrushers.DialogueSystem.Conversation.Assign	(	ChatMapper.Conversation	chatMapperConversation,
		bool	putEndSequenceOnLastSplit = `true`
	)

Copies a Chat Mapper conversation.

Parameters

chatMapperConversation The Chat Mapper conversation.

◆ GetDialogueEntry() [1/2]

DialogueEntry PixelCrushers.DialogueSystem.Conversation.GetDialogueEntry ( int dialogueEntryID )

Looks up a dialogue entry by its ID.

Returns: The dialogue entry whose Id matches, or null if no such entry exists.

Parameters

dialogueEntryID The dialogue entry ID.

◆ GetDialogueEntry() [2/2]

DialogueEntry PixelCrushers.DialogueSystem.Conversation.GetDialogueEntry ( string title )

Looks up a dialogue entry by title.

Returns: The dialogue entry whose title matches, or null if no such entry exists.

Parameters

title The title of the dialogue entry.

◆ GetFirstDialogueEntry()

DialogueEntry PixelCrushers.DialogueSystem.Conversation.GetFirstDialogueEntry ( )

Looks up the first dialogue entry in the conversation, defined (as in Chat Mapper) as the entry titled START.

Returns: The first dialogue entry in the conversation.

◆ SplitPipesIntoEntries()

void PixelCrushers.DialogueSystem.Conversation.SplitPipesIntoEntries	(	bool	putEndSequenceOnLastSplit = `true`,
		bool	trimWhitespace = `false`
	)

Processes all dialogue entries, splitting entries containing pipe characters ("|") into multiple entries.

Parameters

putEndSequenceOnLastSplit	Put sequencer commands with end keyword on the last split entry, other commands on the first entry, and use default delay for middle entries.
deleteNewlinesAfterPipes	If newline follows pipe, delete it.

Member Data Documentation

◆ canvasScrollPosition

Vector2 PixelCrushers.DialogueSystem.Conversation.canvasScrollPosition = Vector2.zero

Conversation's scroll position in Dialogue Editor window canvas.

◆ canvasZoom

float PixelCrushers.DialogueSystem.Conversation.canvasZoom = 1

Conversation's zoom level in Dialogue Editor window.

◆ dialogueEntries

List<DialogueEntry> PixelCrushers.DialogueSystem.Conversation.dialogueEntries = new List<DialogueEntry>()

The dialogue entries in the conversation.

◆ nodeColor

string PixelCrushers.DialogueSystem.Conversation.nodeColor = null

Currently unused by the dialogue system, this is the nodeColor value defined in Chat Mapper.

◆ overrideSettings

ConversationOverrideDisplaySettings PixelCrushers.DialogueSystem.Conversation.overrideSettings = new ConversationOverrideDisplaySettings()

Optional settings to override the Dialogue Manager's Display Settings.

Property Documentation

◆ ActorID

int PixelCrushers.DialogueSystem.Conversation.ActorID

getset

Gets or sets the Actor ID.

The actor is the primary participant in the conversation.

The actor ID.

◆ ConversantID

int PixelCrushers.DialogueSystem.Conversation.ConversantID

getset

Gets or sets the Conversant ID.

The conversant is the other participant in the conversation.

The conversant ID.

◆ Description

string PixelCrushers.DialogueSystem.Conversation.Description

getset

Gets or sets the Description field.

The conversation's description, typically only used internally by the developer.

◆ Title

string PixelCrushers.DialogueSystem.Conversation.Title

getset

Gets or sets the Title field.

The title of the conversation, most often used to look up and start a specific conversation.

The documentation for this class was generated from the following file:

D:/Documents/Unity Projects/Dialogue System/Dev/Source/Assets/Dialogue System/Scripts/Core/Model-View-Controller/Model/Data/Conversation.cs
