A sequencer plays sequences of commands such as camera cuts, animation, audio, activating game objects, etc. More...

Inheritance diagram for PixelCrushers.DialogueSystem.Sequencer:

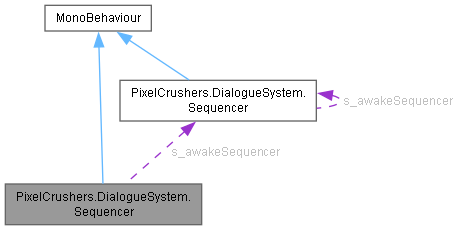

Collaboration diagram for PixelCrushers.DialogueSystem.Sequencer:

[legend]

Public Member Functions
delegate void	MessageStringDelegate (string message)

void	UseCamera (Camera sequencerCamera, GameObject cameraAngles)

void	UseCamera (Camera sequencerCamera, GameObject alternateSequencerCameraObject, GameObject cameraAngles)

void	SwitchCamera (Camera newCamera)
	Switches the sequencer camera to a different camera object immediately.

void	TakeCameraControl ()
	Takes control of the camera.

void	Open ()
	Opens this instance.

void	Close ()
	Closes and destroy this sequencer.

void	OnDestroy ()

void	Update ()

void	SetParticipants (Transform speaker, Transform listener)

void	PlaySequence (string sequence)
	Parses a sequence string and plays the individual commands.

void	PlaySequence (string sequence, bool informParticipants, bool destroyWhenDone)

void	PlaySequence (string sequence, Transform speaker, Transform listener, bool informParticipants, bool destroyWhenDone)

void	PlaySequence (string sequence, Transform speaker, Transform listener, bool informParticipants, bool destroyWhenDone, bool delayOneFrame)

IEnumerator	PlaySequenceAfterOneFrame (string sequence, Transform speaker, Transform listener, bool informParticipants, bool destroyWhenDone)

void	PlayCommand (string commandName, bool required, float time, string message, string endMessage, params string[] args)
	Schedules a command to be played.

void	PlayCommand (QueuedSequencerCommand commandRecord)

void	PlayCommand (QueuedSequencerCommand commandRecord, string commandName, bool required, float time, string message, string endMessage, params string[] args)

System.Type	GetTypeFromName (string typeName)

void	OnSequencerMessage (string message)

void	Stop ()
	Stops all scheduled and active commands.

void	StopQueued ()

void	StopActive ()

void	SetDialoguePanel (bool show, bool immediate)

Static Public Member Functions
static void	Message (string message)
	Sends OnSequencerMessage(message) to the Dialogue Manager.

static void	RegisterShortcut (string shortcut, string value)
	Registers a sequencer shortcut with the Dialogue System.

static void	UnregisterShortcut (string shortcut)
	Unregisters a shortcut from the Dialogue System.

static string	ReplaceShortcuts (string sequence)

static void	Preload ()

static void	SetContinueMode (bool value)

static void	SetContinueMode (DisplaySettings.SubtitleSettings.ContinueButtonMode mode)

static void	SetOriginalContinueMode ()

Public Attributes
bool	disableInternalSequencerCommands = false
	Set `true` to disable the internal sequencer commands – for example, if you want to replace them all with your own.

Static Public Attributes
static bool	reportMissingAudioFiles = false

static Sequencer	s_awakeSequencer
	SequencerCommand can refer to these if they run in Awake.

static string	s_awakeEndMessage

static Transform	s_awakeSpeaker

static Transform	s_awakeListener

static string[]	s_awakeArgs

Properties
bool	isPlaying `[get]`
	Indicates whether a sequence is currently playing.

GameObject	cameraAngles `[get]`

Camera	sequencerCamera `[get]`

Transform	sequencerCameraTransform `[get]`

Transform	speaker `[get]`

Transform	listener `[get]`

ConversationView	conversationView `[get, set]`

Vector3	originalCameraPosition `[get, set]`
	Original camera position at start of conversation.

Quaternion	originalCameraRotation `[get, set]`
	Original camera position at start of conversation.

float	originalOrthographicSize `[get, set]`
	Original 2D camera orthographic size at start of conversation.

bool	keepCameraPositionOnClose `[get, set]`
	If true, don't restore camera position to pre-sequence position when sequencer closes.

float	subtitleEndTime `[get, set]`
	The subtitle end time ({{end}}) if playing a dialogue entry sequence.

string	entrytag `[get, set]`
	The entrytag for the current dialogue entry, if playing a dialogue entry sequence.

string	entrytaglocal `[get]`
	Currently language-localized entrytag.

ActiveConversationRecord	activeConversationRecord `[get, set]`
	Active conversation record associated with this sequencer instance.

int	numQueuedCommands `[get]`

int	numActiveCommands `[get]`

static Dictionary< string, string >	shortcuts `[get]`
	Registered shortcuts:

static Dictionary< string, Stack< string > >	shortcutStack `[get]`
	Stack of values for each shortcut.

Events
Action	FinishedSequenceHandler = null
	This handler is called when the sequence is done playing.

MessageStringDelegate	receivedMessage = null

Detailed Description

A sequencer plays sequences of commands such as camera cuts, animation, audio, activating game objects, etc.

You can use the sequencer to play cutscenes or perform game actions. The dialogue system uses a sequencer to play a sequence for every line of dialogue. If the dialogue author hasn't specified a sequence for a line of dialogue, the dialogue system will generate a basic, default sequence that aims the camera at the speaker.

Member Function Documentation

◆ Close()

void PixelCrushers.DialogueSystem.Sequencer.Close ( )

inline

Closes and destroy this sequencer.

Stops all actions and restores the original camera position.

◆ GetTypeFromName()

System.Type PixelCrushers.DialogueSystem.Sequencer.GetTypeFromName ( string typeName )

inline

◆ Message()

static void PixelCrushers.DialogueSystem.Sequencer.Message ( string message )

inlinestatic

Sends OnSequencerMessage(message) to the Dialogue Manager.

Since sequencers are usually on the Dialogue Manager object, this is a convenient way to send a message to all active sequencers. You can use this method if your sequence is waiting for a message.

Parameters

message Message to send.

◆ MessageStringDelegate()

delegate void PixelCrushers.DialogueSystem.Sequencer.MessageStringDelegate ( string message )

◆ OnDestroy()

void PixelCrushers.DialogueSystem.Sequencer.OnDestroy ( )

inline

◆ OnSequencerMessage()

void PixelCrushers.DialogueSystem.Sequencer.OnSequencerMessage ( string message )

inline

◆ Open()

void PixelCrushers.DialogueSystem.Sequencer.Open ( )

inline

Opens this instance.

Simply resets hasCameraControl.

◆ PlayCommand() [1/3]

void PixelCrushers.DialogueSystem.Sequencer.PlayCommand ( QueuedSequencerCommand commandRecord )

inline

◆ PlayCommand() [2/3]

void PixelCrushers.DialogueSystem.Sequencer.PlayCommand	(	QueuedSequencerCommand	commandRecord,
		string	commandName,
		bool	required,
		float	time,
		string	message,
		string	endMessage,
		params string[]	args
	)

inline

◆ PlayCommand() [3/3]

void PixelCrushers.DialogueSystem.Sequencer.PlayCommand	(	string	commandName,
		bool	required,
		float	time,
		string	message,
		string	endMessage,
		params string[]	args
	)

inline

Schedules a command to be played.

Parameters

commandName	The command to play. See sequencerCommands for the list of valid commands.
required	If `true`, the command will play even if Stop() is called. If this command absolutely must run (for example, setting up the final camera angle at the end of the sequence), set required to true.
time	The time delay in seconds at which to start the command. If time is `0`, the command starts immediately.
args	An array of arguments for the command. Pass `null` if no arguments are required.

// At the 2 second mark, cut the camera to a closeup of the listener. string[] args = new string[] { "Closeup", "listener" }; Play("Camera", true, 2, args);

◆ PlaySequence() [1/4]

void PixelCrushers.DialogueSystem.Sequencer.PlaySequence ( string sequence )

inline

Parses a sequence string and plays the individual commands.

Parameters

sequence The sequence to play, in the form:

\<sequence\> ::= \<statement\> ; \<statement\> ; ...

\<statement\> ::= [required] \<command\>( \<arg\>, \<arg\>, ... ) [@\<time\>] [->Message(Y)]

For example, the sequence below shows a wide angle shot of the speaker reloading and firing, and then cuts to a closeup of the listener.

Camera(Wide); Animation(Reload); Animation(Fire)@2; required Camera(Closeup, listener)@3.5

◆ PlaySequence() [2/4]

void PixelCrushers.DialogueSystem.Sequencer.PlaySequence	(	string	sequence,
		bool	informParticipants,
		bool	destroyWhenDone
	)

inline

◆ PlaySequence() [3/4]

void PixelCrushers.DialogueSystem.Sequencer.PlaySequence	(	string	sequence,
		Transform	speaker,
		Transform	listener,
		bool	informParticipants,
		bool	destroyWhenDone
	)

inline

◆ PlaySequence() [4/4]

void PixelCrushers.DialogueSystem.Sequencer.PlaySequence	(	string	sequence,
		Transform	speaker,
		Transform	listener,
		bool	informParticipants,
		bool	destroyWhenDone,
		bool	delayOneFrame
	)

inline

◆ PlaySequenceAfterOneFrame()

IEnumerator PixelCrushers.DialogueSystem.Sequencer.PlaySequenceAfterOneFrame	(	string	sequence,
		Transform	speaker,
		Transform	listener,
		bool	informParticipants,
		bool	destroyWhenDone
	)

inline

◆ Preload()

static void PixelCrushers.DialogueSystem.Sequencer.Preload ( )

inlinestatic

◆ RegisterShortcut()

static void PixelCrushers.DialogueSystem.Sequencer.RegisterShortcut	(	string	shortcut,
		string	value
	)

inlinestatic

Registers a sequencer shortcut with the Dialogue System.

When playing sequences, shortcuts wrapped in double braces are replaced by their values.

Parameters

shortcut	Shortcut ID
value	Sequence that replaces the shortcut ID.

◆ ReplaceShortcuts()

static string PixelCrushers.DialogueSystem.Sequencer.ReplaceShortcuts ( string sequence )

inlinestatic

◆ SetContinueMode() [1/2]

static void PixelCrushers.DialogueSystem.Sequencer.SetContinueMode ( bool value )

inlinestatic

◆ SetContinueMode() [2/2]

static void PixelCrushers.DialogueSystem.Sequencer.SetContinueMode ( DisplaySettings::SubtitleSettings::ContinueButtonMode mode )

inlinestatic

◆ SetDialoguePanel()

void PixelCrushers.DialogueSystem.Sequencer.SetDialoguePanel	(	bool	show,
		bool	immediate
	)

inline

◆ SetOriginalContinueMode()

static void PixelCrushers.DialogueSystem.Sequencer.SetOriginalContinueMode ( )

inlinestatic

◆ SetParticipants()

void PixelCrushers.DialogueSystem.Sequencer.SetParticipants	(	Transform	speaker,
		Transform	listener
	)

inline

◆ Stop()

void PixelCrushers.DialogueSystem.Sequencer.Stop ( )

inline

Stops all scheduled and active commands.

◆ StopActive()

void PixelCrushers.DialogueSystem.Sequencer.StopActive ( )

inline

◆ StopQueued()

void PixelCrushers.DialogueSystem.Sequencer.StopQueued ( )

inline

◆ SwitchCamera()

void PixelCrushers.DialogueSystem.Sequencer.SwitchCamera ( Camera newCamera )

inline

Switches the sequencer camera to a different camera object immediately.

Restores the previous camera first.

Parameters

newCamera New camera.

◆ TakeCameraControl()

void PixelCrushers.DialogueSystem.Sequencer.TakeCameraControl ( )

inline

Takes control of the camera.

◆ UnregisterShortcut()

static void PixelCrushers.DialogueSystem.Sequencer.UnregisterShortcut ( string shortcut )

inlinestatic

Unregisters a shortcut from the Dialogue System.

Parameters

shortcut Shortcut to remove.

◆ Update()

void PixelCrushers.DialogueSystem.Sequencer.Update ( )

inline

◆ UseCamera() [1/2]

void PixelCrushers.DialogueSystem.Sequencer.UseCamera	(	Camera	sequencerCamera,
		GameObject	alternateSequencerCameraObject,
		GameObject	cameraAngles
	)

inline

◆ UseCamera() [2/2]

void PixelCrushers.DialogueSystem.Sequencer.UseCamera	(	Camera	sequencerCamera,
		GameObject	cameraAngles
	)

inline

Member Data Documentation

◆ disableInternalSequencerCommands

bool PixelCrushers.DialogueSystem.Sequencer.disableInternalSequencerCommands = false

Set true to disable the internal sequencer commands – for example, if you want to replace them all with your own.

◆ reportMissingAudioFiles

bool PixelCrushers.DialogueSystem.Sequencer.reportMissingAudioFiles = false

static

◆ s_awakeArgs

string [] PixelCrushers.DialogueSystem.Sequencer.s_awakeArgs

static

◆ s_awakeEndMessage

string PixelCrushers.DialogueSystem.Sequencer.s_awakeEndMessage

static

◆ s_awakeListener

Transform PixelCrushers.DialogueSystem.Sequencer.s_awakeListener

static

◆ s_awakeSequencer

Sequencer PixelCrushers.DialogueSystem.Sequencer.s_awakeSequencer

static

SequencerCommand can refer to these if they run in Awake.

◆ s_awakeSpeaker

Transform PixelCrushers.DialogueSystem.Sequencer.s_awakeSpeaker

static

Property Documentation

◆ activeConversationRecord

ActiveConversationRecord PixelCrushers.DialogueSystem.Sequencer.activeConversationRecord

getset

Active conversation record associated with this sequencer instance.

◆ cameraAngles

GameObject PixelCrushers.DialogueSystem.Sequencer.cameraAngles

get

◆ conversationView

ConversationView PixelCrushers.DialogueSystem.Sequencer.conversationView

getset

◆ entrytag

string PixelCrushers.DialogueSystem.Sequencer.entrytag

getset

The entrytag for the current dialogue entry, if playing a dialogue entry sequence.

◆ entrytaglocal

string PixelCrushers.DialogueSystem.Sequencer.entrytaglocal

get

Currently language-localized entrytag.

◆ isPlaying

bool PixelCrushers.DialogueSystem.Sequencer.isPlaying

get

Indicates whether a sequence is currently playing.

The Dialogue System can queue up any number of actions using the Play() method. This property returns true if any actions are scheduled or active.

true if is playing; otherwise, false.

◆ keepCameraPositionOnClose

bool PixelCrushers.DialogueSystem.Sequencer.keepCameraPositionOnClose

getset

If true, don't restore camera position to pre-sequence position when sequencer closes.

◆ listener

Transform PixelCrushers.DialogueSystem.Sequencer.listener

get

◆ numActiveCommands

int PixelCrushers.DialogueSystem.Sequencer.numActiveCommands

get

◆ numQueuedCommands

int PixelCrushers.DialogueSystem.Sequencer.numQueuedCommands

get

◆ originalCameraPosition

Vector3 PixelCrushers.DialogueSystem.Sequencer.originalCameraPosition

getset

Original camera position at start of conversation.

At the end of the conversation, the camera is restored back to this position. You can change this if you want to reset the 'original' position to be elsewhere.

◆ originalCameraRotation

Quaternion PixelCrushers.DialogueSystem.Sequencer.originalCameraRotation

getset

Original camera position at start of conversation.

You can change this if you want to reset the 'original' rotation to be different.

◆ originalOrthographicSize

float PixelCrushers.DialogueSystem.Sequencer.originalOrthographicSize

getset

Original 2D camera orthographic size at start of conversation.

You can change this if you want to reset the the 'original' size to be different.

◆ sequencerCamera

Camera PixelCrushers.DialogueSystem.Sequencer.sequencerCamera

get

◆ sequencerCameraTransform

Transform PixelCrushers.DialogueSystem.Sequencer.sequencerCameraTransform

get

◆ shortcuts

Dictionary<string, string> PixelCrushers.DialogueSystem.Sequencer.shortcuts

staticget

Registered shortcuts:

◆ shortcutStack

Dictionary<string, Stack<string> > PixelCrushers.DialogueSystem.Sequencer.shortcutStack

staticget

Stack of values for each shortcut.

If adding a shortcut that already exists, the new value of the shortcut is added to the top of the stack. When removed, it's popped off the stack, revealing the previous value.

◆ speaker

Transform PixelCrushers.DialogueSystem.Sequencer.speaker

get

◆ subtitleEndTime

float PixelCrushers.DialogueSystem.Sequencer.subtitleEndTime

getset

The subtitle end time ({{end}}) if playing a dialogue entry sequence.

Event Documentation

◆ FinishedSequenceHandler

Action PixelCrushers.DialogueSystem.Sequencer.FinishedSequenceHandler = null

This handler is called when the sequence is done playing.

◆ receivedMessage

MessageStringDelegate PixelCrushers.DialogueSystem.Sequencer.receivedMessage = null

The documentation for this class was generated from the following file:

C:/Dev/Dialogue System/Dev/Release2/Assets/Plugins/Pixel Crushers/Dialogue System/Scripts/MVC/Sequencer/Sequencer.cs

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Properties

Events

Detailed Description

Member Function Documentation

◆ Close()

◆ GetTypeFromName()

◆ Message()

◆ MessageStringDelegate()

◆ OnDestroy()

◆ OnSequencerMessage()

◆ Open()

◆ PlayCommand() [1/3]

◆ PlayCommand() [2/3]

◆ PlayCommand() [3/3]

◆ PlaySequence() [1/4]

◆ PlaySequence() [2/4]

◆ PlaySequence() [3/4]

◆ PlaySequence() [4/4]

◆ PlaySequenceAfterOneFrame()

◆ Preload()

◆ RegisterShortcut()

◆ ReplaceShortcuts()

◆ SetContinueMode() [1/2]

◆ SetContinueMode() [2/2]

◆ SetDialoguePanel()

◆ SetOriginalContinueMode()

◆ SetParticipants()

◆ Stop()

◆ StopActive()

◆ StopQueued()

◆ SwitchCamera()

◆ TakeCameraControl()

◆ UnregisterShortcut()

◆ Update()

◆ UseCamera() [1/2]

◆ UseCamera() [2/2]

Member Data Documentation

◆ disableInternalSequencerCommands

◆ reportMissingAudioFiles

◆ s_awakeArgs

◆ s_awakeEndMessage

◆ s_awakeListener

◆ s_awakeSequencer

◆ s_awakeSpeaker

Property Documentation

◆ activeConversationRecord

◆ cameraAngles

◆ conversationView

◆ entrytag

◆ entrytaglocal

◆ isPlaying

◆ keepCameraPositionOnClose

◆ listener

◆ numActiveCommands

◆ numQueuedCommands

◆ originalCameraPosition

◆ originalCameraRotation

◆ originalOrthographicSize

◆ sequencerCamera

◆ sequencerCameraTransform

◆ shortcuts

◆ shortcutStack

◆ speaker

◆ subtitleEndTime

Event Documentation

◆ FinishedSequenceHandler

◆ receivedMessage
