PixelCrushers.DialogueSystem.Asset Class Reference

The base class of all assets such as actors, conversations, items, locations and variables found in a DialogueDatabase. More...

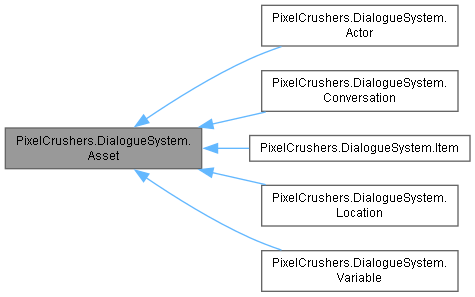

Inheritance diagram for PixelCrushers.DialogueSystem.Asset:

Public Member Functions
	Asset ()
	Initializes a new DialogueAsset.
	Asset (Asset sourceAsset)
	Copy constructor.
	Asset (int chatMapperID, List< ChatMapper.Field > chatMapperFields)
	Initializes a new DialogueAsset copied from a Chat Mapper asset.
void	Assign (int chatMapperID, List< ChatMapper.Field > chatMapperFields)
	Copies a Chat Mapper asset.
bool	FieldExists (string title)
	Checks whether a field exists.
string	LookupValue (string title)
	Looks up the value of a field.
string	LookupLocalizedValue (string title)
	Looks up the localized value of a field for the current language.
int	LookupInt (string title)
	Looks up the value of a field.
float	LookupFloat (string title)
	Looks up the value of a field.
bool	LookupBool (string title)
	Looks up the value of a field.
bool	IsFieldAssigned (string title)
	Checks whether a field exists and has non-empty text.
Field	AssignedField (string title)
	Returns a field if it exists and has non-empty text.

Public Attributes
int	id = 0
	Every asset has an ID number.
List< Field >	fields = null
	The asset's fields.

Properties
string	Name [get, set]
	Gets or sets the Name field.
string	localizedName [get]
	Gets the localized Name field.
string	Description [get, set]
	Gets or sets the Description field, which is optional and may not exist.

Detailed Description

The base class of all assets such as actors, conversations, items, locations and variables found in a DialogueDatabase.

Constructor & Destructor Documentation

Asset() [1/3]

PixelCrushers.DialogueSystem.Asset.Asset ( )

inline

Initializes a new DialogueAsset.

Asset() [2/3]

PixelCrushers.DialogueSystem.Asset.Asset ( Asset  sourceAsset )

inline

Copy constructor.

Parameters

sourceAsset

Source asset.

Asset() [3/3]

PixelCrushers.DialogueSystem.Asset.Asset ( int  chatMapperID, List< ChatMapper::Field >  chatMapperFields  )

inline

Initializes a new DialogueAsset copied from a Chat Mapper asset.

Parameters

chatMapperID	The Chat Mapper asset's ID.
chatMapperFields	The Chat Mapper asset's fields.

Member Function Documentation

Assign()

void PixelCrushers.DialogueSystem.Asset.Assign ( int  chatMapperID, List< ChatMapper::Field >  chatMapperFields  )

inline

Copies a Chat Mapper asset.

Parameters

chatMapperID	Chat Mapper asset's ID.
chatMapperFields	The Chat Mapper asset's fields.

AssignedField()

Field PixelCrushers.DialogueSystem.Asset.AssignedField ( string  title )

inline

Returns a field if it exists and has non-empty text.

Returns

The field, or null if it doesn't exist or has empty text.

Parameters

title

Title of the field.

FieldExists()

bool PixelCrushers.DialogueSystem.Asset.FieldExists ( string  title )

inline

Checks whether a field exists.

Returns

true if the field exists; otherwise false.

Parameters

title

Title of the field.

IsFieldAssigned()

bool PixelCrushers.DialogueSystem.Asset.IsFieldAssigned ( string  title )

inline

Checks whether a field exists and has non-empty text.

Returns

true if the field is assigned; otherwise, false.

Parameters

title

Title of the field.

LookupBool()

bool PixelCrushers.DialogueSystem.Asset.LookupBool ( string  title )

inline

Looks up the value of a field.

Returns

The bool value of the field with the specified title, or false if no field matches.

Parameters

title

The title of the field to look up.

LookupFloat()

float PixelCrushers.DialogueSystem.Asset.LookupFloat ( string  title )

inline

Looks up the value of a field.

Returns

The float value of the field with the specified title, or 0 if no field matches.

Parameters

title

The title of the field to look up.

LookupInt()

int PixelCrushers.DialogueSystem.Asset.LookupInt ( string  title )

inline

Looks up the value of a field.

Returns

The int value of the field with the specified title, or 0 if no field matches.

Parameters

title

The title of the field to look up.

LookupLocalizedValue()

string PixelCrushers.DialogueSystem.Asset.LookupLocalizedValue ( string  title )

inline

Looks up the localized value of a field for the current language.

Returns

The localized value.

Parameters

title

The title of the field to look up.

LookupValue()

string PixelCrushers.DialogueSystem.Asset.LookupValue ( string  title )

inline

Looks up the value of a field.

Returns

The string value of the field with the specified title, or null if no field matches.

Parameters

title

The title of the field to look up.

Member Data Documentation

fields

List<Field> PixelCrushers.DialogueSystem.Asset.fields = null

The asset's fields.

An Actor asset may have fields such as Age and IsPlayer, while a DialogueEntry asset may have fields such as Menu Text, Dialogue Text, and Video File.

id

int PixelCrushers.DialogueSystem.Asset.id = 0

Every asset has an ID number.

Internally, the Dialogue System works like Chat Mapper and references assets by ID number.

Property Documentation

Description

string PixelCrushers.DialogueSystem.Asset.Description

getset

Gets or sets the Description field, which is optional and may not exist.

localizedName

string PixelCrushers.DialogueSystem.Asset.localizedName

get

Gets the localized Name field.

The value of the localized Name field.

Name

string PixelCrushers.DialogueSystem.Asset.Name

getset

Gets or sets the Name field.

The value of the asset's Name field.

---

The documentation for this class was generated from the following file:

• C:/Dev/Dialogue System/Dev/Release2/Assets/Plugins/Pixel Crushers/Dialogue System/Scripts/MVC/Model/Data/Asset.cs
