Specifies keyboard and/or controller navigation settings. More...

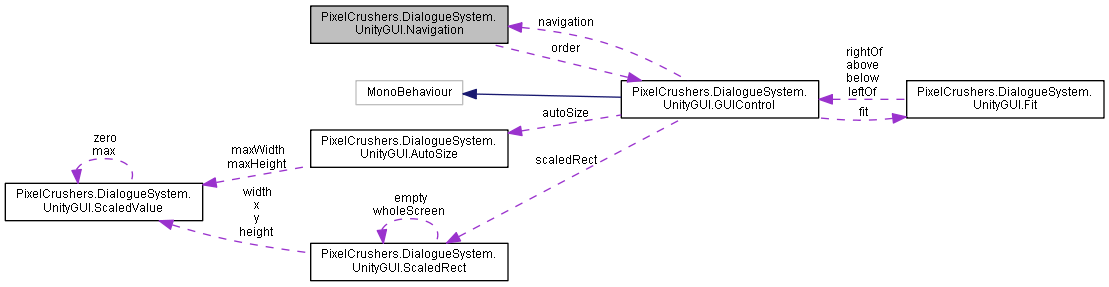

Collaboration diagram for PixelCrushers.DialogueSystem.UnityGUI.Navigation:

[legend]

Public Member Functions
void	FocusFirstControl ()
	Focuses the first control. More...

void	CheckNavigationInput (Vector2 relativeMousePosition)
	Checks the navigation input and updates the current control if necessary. More...

void	Navigate (int direction)
	Navigates in a specified direction. More...

Public Attributes
bool	enabled = false
	Set `true` to enable keyboard/controller navigation of GUI controls. More...

bool	focusFirstControlOnEnable = true
	Set `true` to always focus the first control when the parent is enabled. More...

bool	jumpToMousePosition = true
	If the mouse hovers over a control to focus it, set this `true<c/c> to jump the current focus to that control.` More...

GUIControl[]	order
	The list of child controls that can be navigated. More...

string	clickButton = "Fire1"
	The button used to click the current control. More...

KeyCode	click = KeyCode.Space
	The key used to click the current control. More...

KeyCode	previous = KeyCode.UpArrow
	The key used to navigate to the previous control. More...

KeyCode	next = KeyCode.DownArrow
	The key used to navigate to the next control. More...

string	axis = "Vertical"
	The controller axis that controls navigation. More...

bool	invertAxis = true

float	axisRepeatDelay = 1f
	When holding the axis in a direction, the amount of time between navigating to the next/previous control. More...

float	mouseWheelSensitivity = 5f

Properties
string?	FocusedControlName `[get]`
	Gets the name of the control that should currently have focus. More...

bool	IsClicked `[get]`

Detailed Description

Specifies keyboard and/or controller navigation settings.

Member Function Documentation

◆ CheckNavigationInput()

void PixelCrushers.DialogueSystem.UnityGUI.Navigation.CheckNavigationInput ( Vector2 relativeMousePosition )

Checks the navigation input and updates the current control if necessary.

◆ FocusFirstControl()

void PixelCrushers.DialogueSystem.UnityGUI.Navigation.FocusFirstControl ( )

Focuses the first control.

◆ Navigate()

void PixelCrushers.DialogueSystem.UnityGUI.Navigation.Navigate ( int direction )

Navigates in a specified direction.

Parameters

direction Direction (-1/+1).

Member Data Documentation

◆ axis

string PixelCrushers.DialogueSystem.UnityGUI.Navigation.axis = "Vertical"

The controller axis that controls navigation.

◆ axisRepeatDelay

float PixelCrushers.DialogueSystem.UnityGUI.Navigation.axisRepeatDelay = 1f

When holding the axis in a direction, the amount of time between navigating to the next/previous control.

◆ click

KeyCode PixelCrushers.DialogueSystem.UnityGUI.Navigation.click = KeyCode.Space

The key used to click the current control.

◆ clickButton

string PixelCrushers.DialogueSystem.UnityGUI.Navigation.clickButton = "Fire1"

The button used to click the current control.

◆ enabled

bool PixelCrushers.DialogueSystem.UnityGUI.Navigation.enabled = false

Set true to enable keyboard/controller navigation of GUI controls.

◆ focusFirstControlOnEnable

bool PixelCrushers.DialogueSystem.UnityGUI.Navigation.focusFirstControlOnEnable = true

Set true to always focus the first control when the parent is enabled.

◆ invertAxis

bool PixelCrushers.DialogueSystem.UnityGUI.Navigation.invertAxis = true

◆ jumpToMousePosition

bool PixelCrushers.DialogueSystem.UnityGUI.Navigation.jumpToMousePosition = true

If the mouse hovers over a control to focus it, set this true<c/c> to jump the current focus to that control.

◆ mouseWheelSensitivity

float PixelCrushers.DialogueSystem.UnityGUI.Navigation.mouseWheelSensitivity = 5f

◆ next

KeyCode PixelCrushers.DialogueSystem.UnityGUI.Navigation.next = KeyCode.DownArrow

The key used to navigate to the next control.

◆ order

GUIControl [] PixelCrushers.DialogueSystem.UnityGUI.Navigation.order

The list of child controls that can be navigated.

You must set populate this list or navigation won't work.

◆ previous

KeyCode PixelCrushers.DialogueSystem.UnityGUI.Navigation.previous = KeyCode.UpArrow

The key used to navigate to the previous control.

Property Documentation

◆ FocusedControlName

string? PixelCrushers.DialogueSystem.UnityGUI.Navigation.FocusedControlName

get

Gets the name of the control that should currently have focus.

The name of the focused control.

◆ IsClicked

bool PixelCrushers.DialogueSystem.UnityGUI.Navigation.IsClicked

get

The documentation for this class was generated from the following file:

D:/Documents/Unity Projects/Dialogue System/Dev/Source/Assets/Dialogue System/Scripts/Supplemental/Unity GUI/GUI Controls/Tools/Navigation.cs
